Part Number # 58171BTPFM250
SKU # 2332981
Image Disclaimers Message
58171BTPFM250

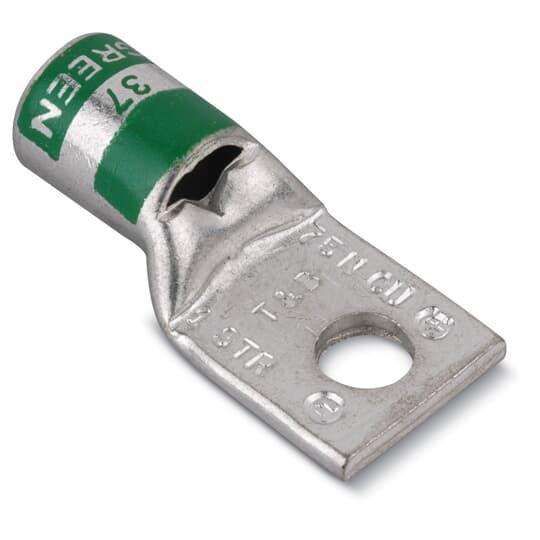

Thomas & Betts 58171BTPFM250 Color-Keyed Compression Lug
Part Number # 58171BTPFM250
SKU # 2332981
Thomas & Betts 58171BTPFM250 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 58171BTPFM250 |
| SKU #: | 2332981 |
| Barrel Size: | 0.93 in Dia |
| Barrel Type: | Standard |
| Conductor Size: | 300, 300 kcmil |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.531, 0.531 in |
| Series: | 58100 |
| Specifications: | Peep Hole |
| Tongue Type: | Blank |
| Type: | 1-Hole |
| Color: | Red |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786209799869 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 58171BTPFM250 Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 58171BTPFM250
Color-Keyed Compression Lug, 1-Hole, Series: 58100, Copper Conductor, 300 kcmil Conductor, Die Code: 71, 35 kV, 1/2 in Stud, Blank Tongue, Standard Barrel, 0.93 in Dia Barrel, Specifications: Peep Hole, 0.531 in Mounting Hole, Copper, Red
Additional Description: TB -58171BTPFM250 (N) 250 TERMINAL,BLNK TNG,PLAIN FINISH NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Copper Blank Tongue Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 300 Flex, Plain Finish, Die Code 71, Die Color Code Red
58171BTPFM250 Application
For providing a high degree of reliability in electrical wiring58171BTPFM250 Item Features
- Connectors have colored bands or colored dots that correspond to color markings on the dies
- Color-Keyed connectors are banded by colored stripes or engraving to indicate location of die on connector for compression
- Connection by compression
- High quality connection at a low installed cost
- High conductivity wrought copper construction
58171BTPFM250 Standards
CSA C22.2 No. 65-04|UL 486A|UL 467 File No. E9809SKU #2332981Part Number #58171BTPFM250UNSPSC39121405UPC00786209799869
