Part Number # 58826BE
SKU # 2222580

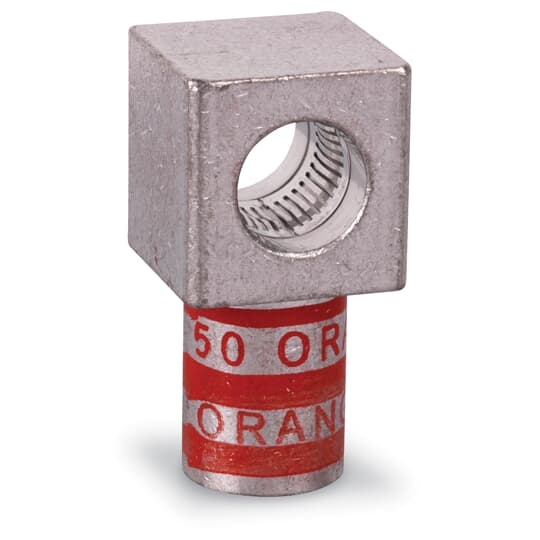

Image provided may only be a representation of
final product and may include optional equipment
58826BE
Thomas & Betts 58826BE Color-Keyed Compression Lug
Part Number # 58826BE
SKU # 2222580
Thomas & Betts 58826BE Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 58826BE |
| SKU #: | 2222580 |
| Barrel Size: | 1-1/2 in Dia |
| Barrel Type: | Blind End/Long |
| Conductor Size: | 900, 900 kcmil |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.531, 0.531 in |
| Overall Length: | 6.74, 6.74 in |
| Series: | 58800 |
| Specifications: | 1-3/4 in Hole Spacing, 1-3/4 in Stud Hole Spacing, Tin Plated |
| Tongue Size: | 3 in L x 2.18 in W x 0.31 in THK |
| Tongue Type: | Straight |
| Type: | 2-Hole, 2-Hole Non-Insulated |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210819396 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 58826BE Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 58826BE
Color-Keyed Compression Lug, 2-Hole Non-Insulated, Series: 58800, Copper Conductor, 900 kcmil Conductor, Die Code: 115, 35 kV, 1/2 in Stud, Straight Tongue, 3 in L x 2.18 in W x 0.31 in THK Tongue, 6.74 in Overall Length, Blind End/Long Barrel, 1-1/2 in Dia Barrel, Specifications: 1-3/4 in Stud Hole Spacing, Tin Plated, 0.531 in Mounting Hole, Copper, Yellow
Additional Description: TB -58826BE CU TP 2HL LUG LONGBRL 900 1/2B YEL SOLD IN MULTIPLES OF 3 ONLY
Catalog Description: Copper Two-Hole Lug, Long Barrel, Blind End, Max 35kV, Wire Size 900 kcmil, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Code 115, Die Color Code Yellow
58826BE Application
For providing a high degree of reliability in electrical wiring58826BE Item Features
- Connectors have colored bands or colored dots that correspond to color markings on the dies
- Color-Keyed connectors are banded by colored stripes or engraving to indicate location of die on connector for compression
- Connection by compression
- High quality connection at a low installed cost
- High conductivity wrought copper construction
- Tin plated finish
58826BE Standards
UL E9809 / UL E9809SKU #2222580Part Number #58826BEUNSPSC39121405UPC00786210819396
