58884BE

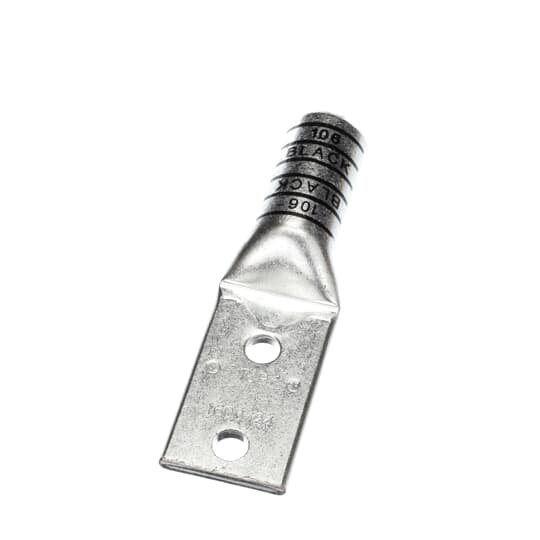

Thomas & Betts 58884BE Color-Keyed Compression Lug
Part Number # 58884BE
SKU # 2358525
Thomas & Betts 58884BE Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 58884BE |
| SKU #: | 2358525 |
| Barrel Size: | 1.33 in Dia |
| Barrel Type: | Blind End/Long |
| Conductor Size: | 646, 646 kcmil |
| Conductor Type: | Copper |
| Mounting Hole Size: | 0.531, 0.531 in |
| Overall Length: | 6.16, 6.16 in |
| Series: | 58800 |
| Specifications: | 1-3/4 in Hole Spacing, 1-3/4 in Stud Hole Spacing, Tin Plated |
| Tongue Size: | 3 in L x 1.94 in W x 0.27 in THK |
| Tongue Type: | Straight |
| Type: | 2-Hole, 2-Hole Non-Insulated |
| Color: | Black |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210819402 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 58884BE Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 58884BE
Color-Keyed Compression Lug, 2-Hole Non-Insulated, Series: 58800, Copper Conductor, 646 kcmil Conductor, Die Code: 106, 35 kV, 1/2 in Stud, Straight Tongue, 3 in L x 1.94 in W x 0.27 in THK Tongue, 6.16 in Overall Length, Blind End/Long Barrel, 1.33 in Dia Barrel, Specifications: 1-3/4 in Stud Hole Spacing, Tin Plated, 0.531 in Mounting Hole, Copper, Black
Additional Description: TB -58884BE CU TP 2HL LUG LONG BRL 646 1/2B BLK
Catalog Description: Copper Two-Hole Lug, Long Barrel, Max 35kV, Blind End, Wire Size 646 kcmil, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Code 106, Die Color Code Black
58884BE Application
For providing a high degree of reliability in electrical wiring58884BE Item Features
- Connectors have colored bands or colored dots that correspond to color markings on the dies
- Color-Keyed connectors are banded by colored stripes or engraving to indicate location of die on connector for compression
- Connection by compression
- High quality connection at a low installed cost
- High conductivity wrought copper construction
- Tin plated finish
58884BE Standards
CSA C22.2 File No. 65/04|UL 486A/467 File No. E9809SKU #2358525Part Number #58884BEUNSPSC39121405UPC00786210819402
