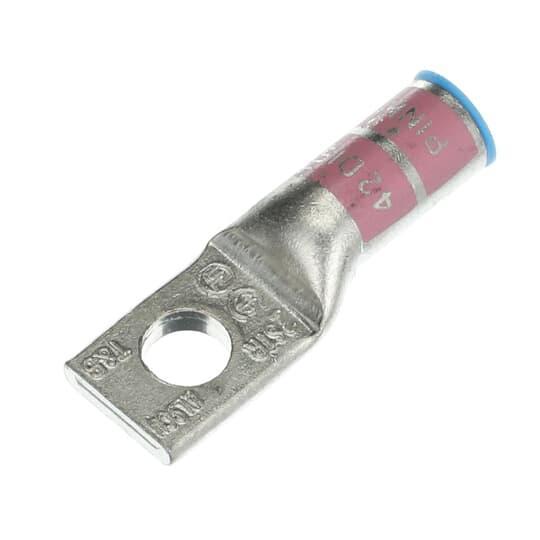

Thomas & Betts 60118-TB Color-Keyed Compression Lug
Part Number # 60118-TB
SKU # 287078
Thomas & Betts 60118-TB Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 60118-TB |
| SKU #: | 287078 |
| Barrel Size: | 0.51 in Dia |
| Barrel Type: | Blind End/Long |
| Conductor Size: | 2, 2 AWG |
| Conductor Type: | Aluminum/Copper |
| Overall Length: | 2.09, 2.09 in |
| Specifications: | Tin Plated |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 0.93 in L x 0.72 in W x 0.19 in THK |
| Type: | 1-Hole, 1-Hole Non-Insulated |
| Color: | Pink |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210601182 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 60118-TB Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 60118-TB
Color-Keyed Compression Lug, 1-Hole Non-Insulated, Aluminum/Copper Conductor, 2 AWG Conductor, Die Code: 42H, 35 kV, 3/8 in Stud, 0.93 in L x 0.72 in W x 0.19 in THK Tongue, 2.09 in Overall Length, Blind End/Long Barrel, 0.51 in Dia Barrel, Specifications: Tin Plated, 90 deg C, Aluminum, Pink
Additional Description: TB -60118-TB CONNECTOR,COMPRES. 1-BOLT
Catalog Description: Aluminum One-Hole Lug, Long Barrel, Blind End, Max 35kV, #2 AWG Wire, 3/8 Inch Bolt Size, Tin Plated, Die Code 42H, Die Color Code Pink
60118-TB Item Features
- For 90 deg C certified to 600 VAC and recommended up to 35 kVAC applications
- Easily matched to the correct Color-Keyed installing die for positive compressions
- Hardened steel dies compress connector around cable, changing round strands to polygonal shapes and cold flowing strands and connector into a solid, homogenous mass
- Long compression areas ensure complete contact
- Multiple compressions prevent creep of aluminum conductors
- Filled with high temperature oxide inhibiting compound
- Electro-tin plating prevents electrolytic corrosion of copper to ensure lowest contact resistance
- High conductivity wrought aluminum construction
60118-TB Standards
CSA Certified|UL File No. E9809SKU #287078Part Number #60118-TBUNSPSC39121405UPC00786210601182
