60136

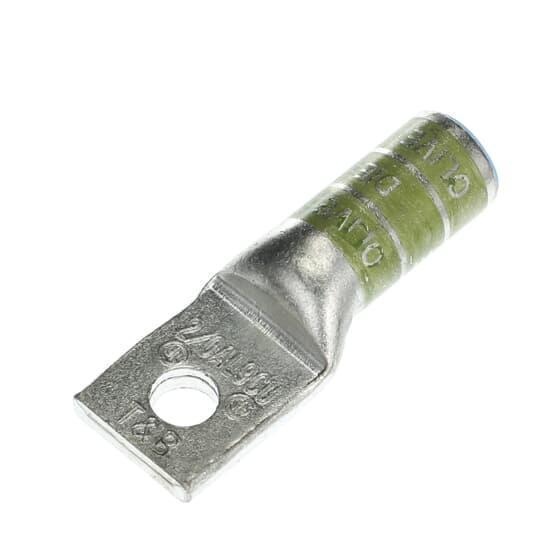

Thomas & Betts 60136 Color-Keyed Compression Lug
Part Number # 60136
SKU # 2259912
Thomas & Betts 60136 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 60136 |
| SKU #: | 2259912 |
| Barrel Size: | 0.7 in Dia |
| Barrel Type: | Blind End/Long |
| Conductor Size: | 2/0, 2/0 AWG |
| Conductor Type: | Aluminum/Copper |
| Overall Length: | 2.64, 2.64 in |
| Specifications: | Tin Plated |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 1.03 in L x 0.97 in W x 0.22 in THK |
| Tongue Type: | Straight |
| Type: | 1-Hole, 1-Hole Non-Insulated |
| Color: | Olive |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210601366 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 60136 Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 60136
Color-Keyed Compression Lug, 1-Hole Non-Insulated, Aluminum/Copper Conductor, 2/0 AWG Conductor, Die Code: 54, 35 kV, 3/8 in Stud, Straight Tongue, 1.03 in L x 0.97 in W x 0.22 in THK Tongue, 2.64 in Overall Length, Blind End/Long Barrel, 0.7 in Dia Barrel, Specifications: Tin Plated, 90 deg C, Aluminum, Olive
Additional Description: TB -60136 2/0 3/8 AL/CU ONE HOLE LUG
Catalog Description: Aluminum One-Hole Lug, Long Barrel, Max 35kV, 2/0 AWG Wire, 3/8 Inch Bolt Size, Tin Plated, Blind End, Die Code 54, Die Color Code Olive
60136 Item Features
- For 90 deg C certified to 600 VAC and recommended up to 35 kVAC applications
- Easily matched to the correct Color-Keyed installing die for positive compressions
- Hardened steel dies compress connector around cable, changing round strands to polygonal shapes and cold flowing strands and connector into a solid, homogenous mass
- Long compression areas ensure complete contact
- Multiple compressions prevent creep of aluminum conductors
- Filled with high temperature oxide inhibiting compound
- Electro-tin plating prevents electrolytic corrosion of copper to ensure lowest contact resistance
- High conductivity wrought aluminum construction
60136 Standards
CSA Certified|UL File No. E9809SKU #2259912Part Number #60136UNSPSC39121405UPC00786210601366
