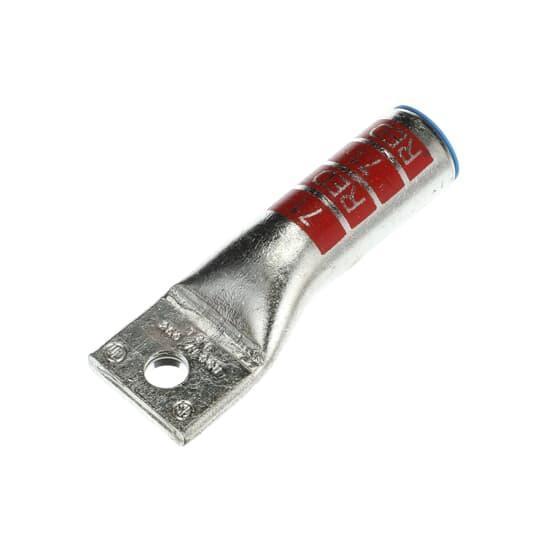

Thomas & Betts 60154 Color-Keyed Compression Lug
Part Number # 60154
SKU # 2418910
Thomas & Betts 60154 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 60154 |
| SKU #: | 2418910 |
| Barrel Size: | 0.917 in Dia |
| Barrel Type: | Blind End/Long |
| Conductor Size: | 250 kcmil |
| Conductor Type: | Aluminum/Copper |
| Overall Length: | 3.73 in |
| Specifications: | Tin Plated |
| Temperature Rating (Degrees F): | 90 deg C |
| Tongue Size: | 0.93 in L x 1.29 in W x 0.27 in THK |
| Tongue Type: | Straight |
| Type: | 1-Hole Non-Insulated |
| Color: | Red |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210601540 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 60154 Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 60154
Color-Keyed® Compression Lug, 1-Hole, Aluminum/Copper Conductor, 250 kcmil Conductor, Die Code: 71, 35 kVAC, 3/8 in Stud, Straight Tongue, 0.93 in L x 1.29 in W x 0.27 in THK Tongue, 3.73 in Overall Length, Blind End/Long Barrel, 0.917 in Dia Barrel, 90 deg C, Aluminum, Red
Additional Description: TB -60154 AL TP 1HL LUG LONG BRL 250 3/8B RED
Catalog Description: Aluminum One-Hole Lug, Long Barrel, Blind End, Max 35kV, 250 kcmil Wire, 3/8 Inch Bolt Size, Tin Plated, Die Code 71, Die Color Code Red
60154 Item Features
- For 90 deg C certified to 600 VAC and recommended up to 35 kVAC applications
- Easily matched to the correct Color-Keyed installing die for positive compressions
- Hardened steel dies compress connector around cable, changing round strands to polygonal shapes and cold flowing strands and connector into a solid, homogenous mass
- Long compression areas ensure complete contact
- Multiple compressions prevent creep of aluminum conductors
- Filled with high temperature oxide inhibiting compound
- Electro-tin plating prevents electrolytic corrosion of copper to ensure lowest contact resistance
- High conductivity wrought aluminum construction
60154 Standards
CSA Certified|UL File No. E9809SKU #2418910Part Number #60154UNSPSC39121405UPC00786210601540
