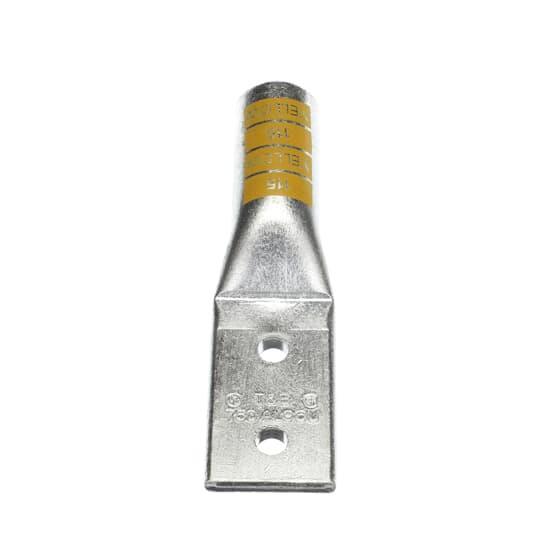

Thomas & Betts 60278 Color-Keyed Compression Lug
Part Number # 60278
SKU # 2199210
Thomas & Betts 60278 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 60278 |
| SKU #: | 2199210 |
| Barrel Size: | 1-1/2 in Dia |
| Barrel Type: | Blind End/Long |
| Conductor Size: | 750, 750 kcmil |
| Conductor Type: | Aluminum/Copper |
| Overall Length: | 7.15, 7.15 in |
| Specifications: | 1-3/4 in Hole Spacing, 1-3/4 in Stud Hole Spacing, Tin Plated |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 3 in L x 2.13 in W x 0.4 in THK |
| Tongue Type: | Straight |
| Type: | 2-Hole, 2-Hole Non-Insulated |
| Color: | Yellow |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210602783 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 60278 Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 60278
Color-Keyed Compression Lug, 2-Hole Non-Insulated, Aluminum/Copper Conductor, 750 kcmil Conductor, Die Code: 115H, 35 kV, 1/2 in Stud, Straight Tongue, 3 in L x 2.13 in W x 0.4 in THK Tongue, 7.15 in Overall Length, Blind End/Long Barrel, 1-1/2 in Dia Barrel, Specifications: 1-3/4 in Stud Hole Spacing, Tin Plated, 90 deg C, Aluminum, Yellow
Additional Description: TB -60278 AL TP 2HL LUG LONG BRL 750 1/2B YEL
Catalog Description: Aluminum Two-Hole Lug, Long Barrel, Blind End, Max 35kV, 750 kcmil Wire, 900 Compact, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Code 115H, Die Color Code Yellow
60278 Item Features
- For 90 deg C certified to 600 VAC and recommended up to 35 kVAC applications
- For aluminum and copper concentric conductors and compact code aluminum strands
- Filled with oxide inhibitor compound
- High conductivity wrought aluminum construction
- Tin plated finish
60278 Standards
CSA Certified|UL File No. E9809SKU #2199210Part Number #60278UNSPSC39121405UPC00786210602783
