Part Number # 6304
SKU # 2272436
Image Disclaimers Message
6304

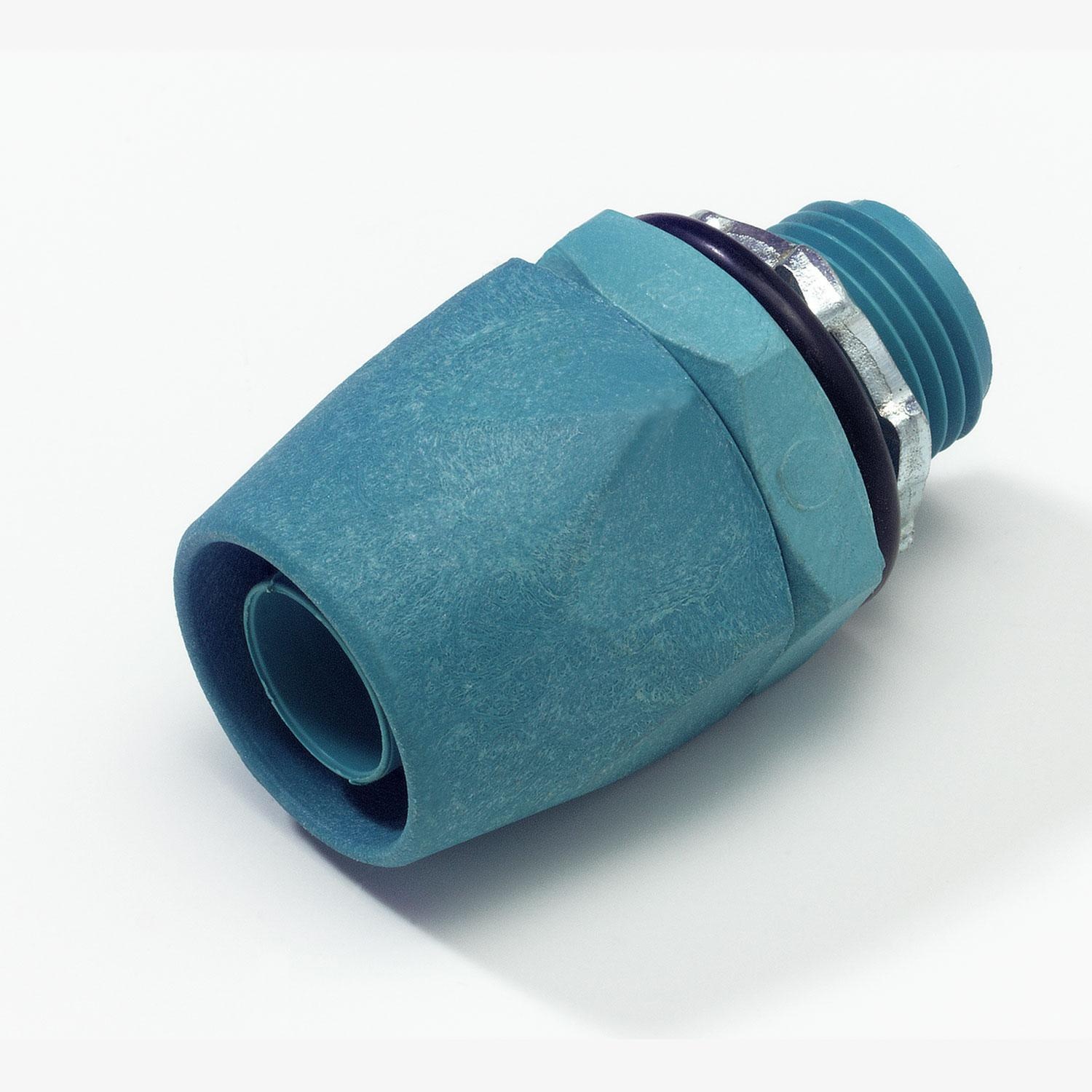

Thomas & Betts 6304 Liquidtight Conduit Connector
Part Number # 6304
SKU # 2272436
$305.19 / 5Each
Typical price:$408.95 / Each
Thomas & Betts 6304 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 6304 |
| SKU #: | 2272436 |
| Finish: | Electro-Plated Zinc, Electro-Zinc Plated |
| Suitable For Use With: | Type A Liquid Tight Flexible Non-Metallic Conduits, Type A Liquidtight Flexible Non-Metallic Conduit |
| Trade Size: | 1, 1 in |
| Type: | Straight |
| Country of origin: | US |
| Material: | Thermoplastic |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121420 |
| UPC: | 00786210063041 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$305.19 / 5Each
Typical price:$408.95 / Each
Quantity:
Thomas & Betts 6304 Liquidtight Conduit Connector
Brand: Thomas & Betts
Part Number: 6304
T&B Conduit Connector, Straight, 1 in, For Use With: Type A Liquid Tight Flexible Non-Metallic Conduits, Thermoplastic, Electro-Zinc Plated
Additional Description: TB -6304 1 IN NONMETALLIC TYPE A LTIGHT CONN
Catalog Description: 1 Inch Non-metallic Type A Liquidtight Connector With Captive Sealing O-ring and Tapered Hub Thread
6304 Application
For provide a liquid tight, dusttight connection between flexible, non-metallic conduit and a box or an enclosure6304 Item Features
- Serrated design provides high mechanical pull-out strength
- Unique component parts (body/gland) design ensures positive seal between conduit and connector
- Tapered threaded hub and furnished neoprene sealing O-ring provide a liquid tight, dust tight seal to a box or enclosure
- Smooth insulated body throughout for maximum dielectric strength
- Captive o-ring and reduced number of parts save installation time
- 0.77 in L thread
6304 Standards
UL File No. E23018SKU #2272436Part Number #6304UNSPSC39121420UPC00786210063041
