Thomas & Betts 63160 Color-Keyed Compression H-Tap Connector
Part Number # 63160
SKU # 2342831
Thomas & Betts 63160 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 63160 |
| SKU #: | 2342831 |
| Conductor Type: | Aluminum/Solid/Stranded Copper, Solid/Stranded Aluminum/Copper |
| Dimensions: | 2-3/4 in L |
| Specifications: | 2-3/4 in L, N Die Code, Red Color, N Die Code, Red |
| Tap Size: | 2 to 4/0, 2 to 4/0 AWG |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Total Taps: | 2 |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121428 |
| UPC: | 00786210631608 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 63160 Color-Keyed Compression H-Tap Connector
Brand: Thomas & Betts
Part Number: 63160
Color-Keyed Compression H-Tap Connector, H Shape, 2 Total Taps, 4/0 AWG to 500 kcmil Main/Run, 2 to 4/0 AWG Tap, 600 VAC, Solid/Stranded Aluminum/Copper Conductor, Specifications: N Die Code, Red, 90 deg C, Aluminum, 2-3/4 in L
Additional Description: TB -63160 (N) AL COMP HTAP 500-4/0 BRNCH4/0-2 RED NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Aluminum Compression H-Tap: Wire Range Main: 500-4/0, Branch 4/0-2, Side Tap 2-6, Length 2-3/4 Inches, Die Code N, Die Color Code Red
63160 Item Features
- Fillerlok tab provides positive interlock and extends wire range
- Wire Bore coated with T&B oxide inhibitor
- Recommended for aluminum to aluminum, aluminum to copper and copper to copper connectors
- Suitable for use with TBM15I tool
- 6 to 2 AWG side tap
63160 Standards
CSA Certified|UL 140B File No. E9809SKU #2342831Part Number #63160UNSPSC39121428UPC00786210631608

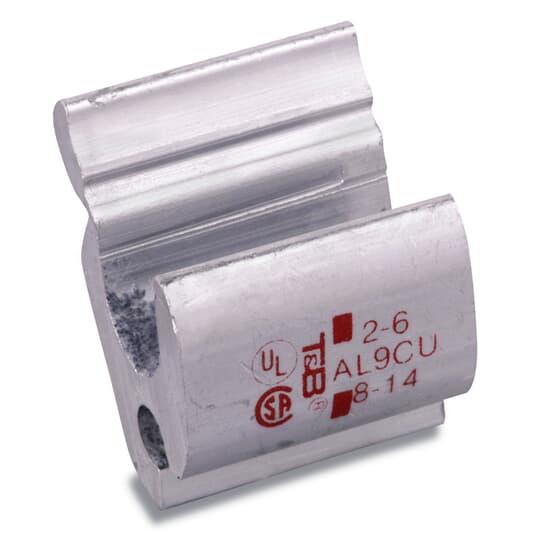

Image provided may only be a representation of final product and may include optional equipment
