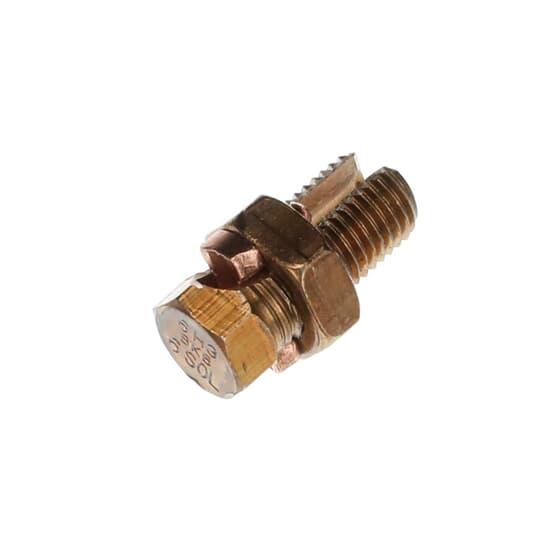

Thomas & Betts 6H3 Blackburn Split Bolt Connector
Part Number # 6H3
SKU # 2276818
$476.90 / 100Each
Thomas & Betts 6H3 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 6H3 |
| SKU #: | 2276818 |
| Conductor Size: | 10 to 6, 10 to 6 AWG |
| Conductor Type: | Solid Copper |
| Specifications: | 0.17 in Split, 21/32 in Hex Nut |
| Type: | Type H High Strength |
| Country of origin: | MX |
| Material: | Bronze Alloy |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121408 |
| UPC: | 00783786200054 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$476.90 / 100Each
Quantity:
Thomas & Betts 6H3 Blackburn Split Bolt Connector
Brand: Thomas & Betts
Part Number: 6H3
Blackburn Split Bolt Connector, Type H High Strength, Solid Copper Conductor, 10 to 6 AWG Conductor, 15/32 x 1-1/8 in Bolt, 0.17 in Split, 21/32 in Hex Nut, Bronze Alloy, Metallic
Additional Description: TB -6H3 H-STRNGTH SPLITBLT CONN 6-10SLD
Catalog Description: Type H High Strength Split-Bolt Connector made of Bronze Alloy for Use on Copper Conductors. Conductor Range for Equal Main and Tap 6 Sol.-10 Sol.
6H3 Application
For splicing, tapping or terminating conductors in power and grounding electrical connection6H3 Item Features
- Bolt and nut of high-strength corrosion resistant bronze alloy
- Pressure bar is copper through 40H, copper alloy for 350 kcmil and above
- Bolt and nut of hex design up to 350 kcmil
- Split-bolt connector made of metallic bronze alloy for use on copper conductors
- 16 AWG stranded conductor range min tap with one max main
- 6 to 10 AWG solid conductor range for equal main and tap
- Will accommodate three wires of maximum size
- 100 Pieces/Pack
6H3 Standards
UL E9809SKU #2276818Part Number #6H3UNSPSC39121408UPC00783786200054
Image provided may only be a representation of final product and may include optional equipment
