Brand: Thomas & Betts
8597

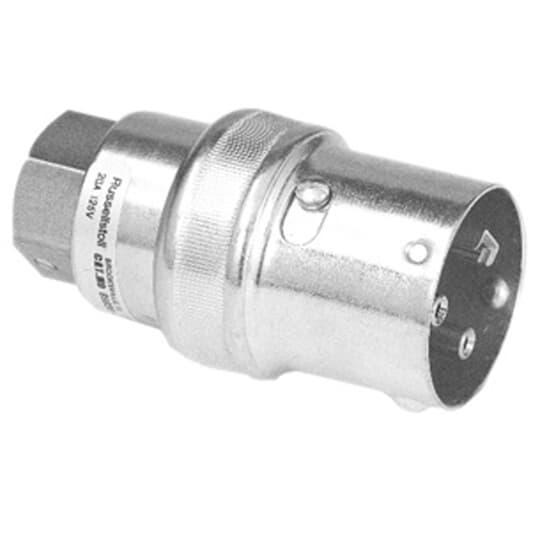

Thomas & Betts 8597 Russellstoll Ever-Lok Male Plug
Part Number # 8597
SKU # 2196582
$1106.39 / Each
Typical price:$1482.56 / Each
Thomas & Betts 8597 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 8597 |
| SKU #: | 2196582 |
| Amperage Rating: | 20 to 30, 20 to 30 A |
| Dimensions: | 2-1/8 in Dia x 3-3/4 in L |
| Enclosure: | IP44 |
| Frequency Rating: | 60, 60 Hz |
| NEMA Rating: | NEMA 3R/12 |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 203, -40 to 203 deg F |
| Color: | Yellow |
| Country of origin: | US |
| Material: | Plated Steel |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121404 |
| UPC: | 00708917146520 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1106.39 / Each
Typical price:$1482.56 / Each
Quantity:
- Russellstoll Ever-Lok Male Plug, 600 VAC, 20 to 30 A, 60 Hz Frequency, 3 Pole, 4 Wires, NEMA 3R/12, Industrial Grade, IP44 Enclosure, -40 to 203 deg F, Plated Steel, Yellow, 2-1/8 in Dia x 3-3/4 in L Dimensions
8597 Application
General Industrial - Lighting Connections, Indoor Welding Stations, Machinery/Tool Connections, Power Distributions Panels, Convenience Power and Battery Charging Equipment and Heavy Duty Applications8597 Item Features
- With 3/4 in ID bushing
- Automatic locking feature mechanically attaches the plug casing to the receptacle or connector and eliminates strain on electrical contacts
- Casings are positively grounded by means of phosphor-bronze ground straps integral with ground contacts
- Equipment grounding is secured by separate set of contacts which make first and break last as required by UL
- Bushing type plugs are furnished with a gland nut and neoprene cable bushing gland to exclude dust and moisture
- A formed glide washer is also provided to facilitate tightening of the gland nut
8597 Standards
UL 1682/840|CSA Certified|NEC Certified|UL94 V-0 Flammability RatingSKU #2196582Part Number #8597UNSPSC39121404UPC00708917146520
