9C53U0

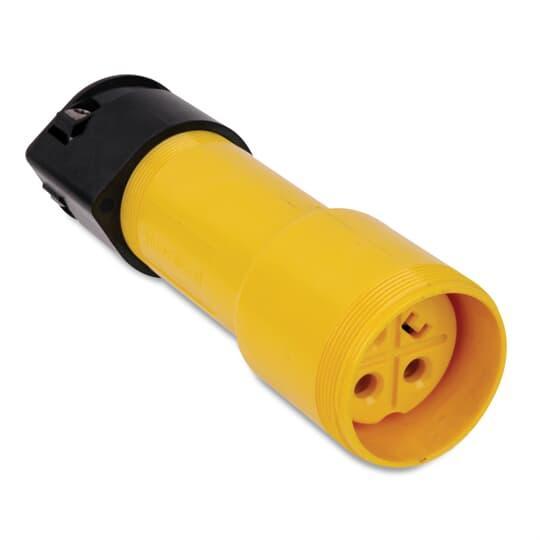

Thomas & Betts 9C53U0 Russellstoll DuraGard Female Connector
Part Number # 9C53U0
SKU # 2272341
$470.51 / Each
Typical price:$630.48 / Each
Thomas & Betts 9C53U0 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 9C53U0 |
| SKU #: | 2272341 |
| Amperage Rating: | 50, 50 A |
| Dimensions: | 2.13 in Dia x 6.25 in L |
| Enclosure: | IP67 |
| Frequency Rating: | 60, 60 Hz |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 203, -40 to 203 deg F |
| Terminal Type: | Screw |
| Type: | Standard Waterproof |
| Color: | Yellow |
| Country of origin: | US |
| Material: | DuraV, DuraV® |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121406 |
| UPC: | 00708917262053 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$470.51 / Each
Typical price:$630.48 / Each
Quantity:
- Russellstoll DuraGard Female Connector, Standard Waterproof, 600 V AC/250 V DC, 50 A, 60 Hz Frequency, 2 Pole, 3 Wires, IP67 Enclosure, -40 to 203 deg F, Screw Terminal, DuraV, Yellow, 2.13 in Dia x 6.25 in L Dimensions
9C53U0 Application
For use where electrical connections need protection from water and/or dust entrance to the contacts or the wiring compartment, marine, construction, agricultural, Food Processing, brewery/beverage, pulp and paper, pharmaceuticals and portable building power9C53U0 Item Features
- Thermoplastic connector designed to prevent short circuits due to water ingress under high water pressure
- Six single rate device polarizations ensure exact voltage, frequency and phase differentiation
- Safety ground makes first, breaks last
- Watertight mated or unmated, while many watertight specifications cover mated connections only
- DuraV housing material specially selected for hot or cold and chemical washdown duty (flame-safe UL 94-V0 rated housings)
- Pin and sleeve design enables higher current flow at cooler temperatures due to large contact circular areas
- A longer system life under corrosive environments
- Round, self-cleaning, constant pressure pin and sleeve contacts of solid CDA 360 brass for long reliable electrical life
- Drop-in assemble interior and easy pressure screw wire termination
- DurORing sealing system for each pin and sleeve and interior assembly
- Superior performance in corrosive environments
- Not just watertight - waterproof for washdown duty (DurORing sealing) that eliminates the need for costly weather boots or adapters
9C53U0 Standards
CSA File No. LL14096|OSHA 29 CFR 1910.147|UL 630 File No. E47956SKU #2272341Part Number #9C53U0UNSPSC39121406UPC00708917262053
