9P54U2/C75

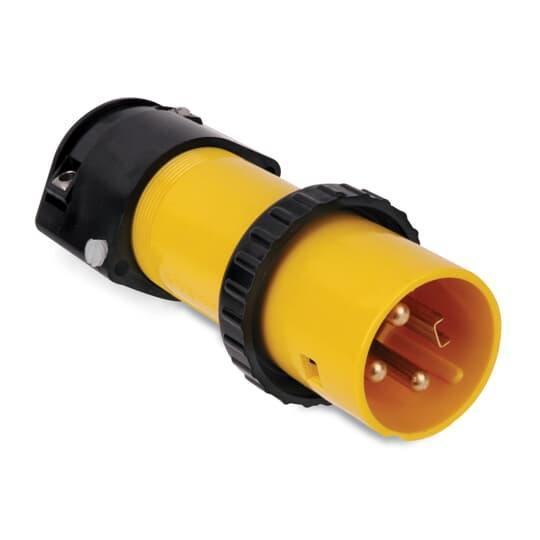

Thomas & Betts 9P54U2/C75 Russellstoll DuraGard Male Plug
Part Number # 9P54U2/C75
SKU # 2297411
$630.67 / Each
Typical price:$845.10 / Each
Thomas & Betts 9P54U2/C75 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 9P54U2/C75 |
| SKU #: | 2297411 |
| Amperage Rating: | 50, 50 A |
| Enclosure: | IP67 |
| Frequency Rating: | 60, 60 Hz |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 203, -40 to 203 deg F |
| Terminal Type: | Screw |
| Type: | Waterproof |
| Country of origin: | US |
| Material: | DuraV, DuraV® |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121404 |
| UPC: | 00708917197904 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$630.67 / Each
Typical price:$845.10 / Each
Quantity:
- Russellstoll DuraGard Male Plug, Waterproof, 250 VAC, 50 A, 60 Hz Frequency, 3 Pole, 4 Wires, IP67 Enclosure, -40 to 203 deg F, Screw Terminal, DuraV, Yellow
9P54U2/C75 Application
For use where electrical connections need protection from water and/or dust entrance to the contacts or the wiring compartment, wash down duty, chemical, outdoor, industrial and marine applications9P54U2/C75 Item Features
- 6 single rate device polarizations ensure exact voltage, frequency and phase differentiation
- Safety ground makes first, breaks last
- Watertight mated or unmated, while many watertight specifications cover mated connections only
- DuraV housing material specially selected for hot or cold and chemical washdown duty
- Pin and sleeve design enables higher current flow at cooler temperatures due to large contact circular areas
- A longer system life under corrosive environments
- Round, self-cleaning, constant pressure pin and sleeve contacts of solid CDA 360 brass for long reliable electrical life
- Drop-in assemble interior and easy pressure screw wire termination
- DurORing sealing system for each pin and sleeve and interior assembly
- Superior performance in corrosive environments
- Not just watertight - waterproof for washdown duty (DurORing sealing) that eliminates the need for costly weather boots or adapters
9P54U2/C75 Standards
UL 1682/746C/630 File No. E47956/E2630|CSA File No. LL14096|UL94 V-0 Flammability RatingSKU #2297411Part Number #9P54U2/C75UNSPSC39121404UPC00708917197904
