Brand: Thomas & Betts

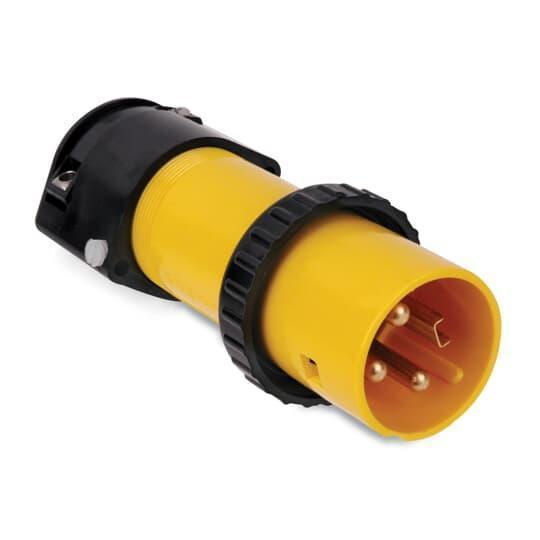

Thomas & Betts 9P54U2 Russellstoll DuraGard Male Plug
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts 9P54U2 Russellstoll DuraGard Male Plug
Brand: Thomas & Betts
Thomas & Betts 9P54U2 Russellstoll DuraGard Male Plug
Part #:9P54U2
SKU #: 2372543
$401.07/EA
Key Features
Part #:9P54U2
SKU #: 2372543
Brand: Thomas & Betts
Amperage Rating: 50, 50 A
Enclosure: IP67
Frequency Rating: 60, 60 Hz
Number of Poles: 3
Number of Wires: 4
$401.07/EA
- 6 single rate device polarizations ensure exact voltage, frequency and phase differentiation
- Safety ground makes first, breaks last
- Watertight mated or unmated, while many watertight specifications cover mated connections only
- DuraV housing material specially selected for hot or cold and chemical washdown duty
- Pin and sleeve design enables higher current flow at cooler temperatures due to large contact circular areas
- A longer system life under corrosive environments
- Round, self-cleaning, constant pressure pin and sleeve contacts of solid CDA 360 brass for long reliable electrical life
- Drop-in assemble interior and easy pressure screw wire termination
- DurORing sealing system for each pin and sleeve and interior assembly
- Superior performance in corrosive environments
- Not just watertight - waterproof for washdown duty (DurORing sealing) that eliminates the need for costly weather boots or adapters
Specifications
Brand: Thomas & Betts
Amperage Rating: 50, 50 A
Enclosure: IP67
Frequency Rating: 60, 60 Hz
Number of Poles: 3
Number of Wires: 4
Temperature Rating (Degrees F): -40 to 203, -40 to 203 deg F
Terminal Type: Screw
Type: 3-Phase Waterproof
Voltage Rating: 250, 250 VAC
Color: Yellow
Country of origin: MX
Material: DuraV, DuraV®
Manufacturer Name: ABB
UNSPSC: 39121402
UPC: 00708917202936
Thomas & Betts 9P54U2 Russellstoll DuraGard Male Plug
Russellstoll DuraGard Male Plug, 3-Phase Waterproof, 250 VAC, 50 A, 60 Hz Frequency, 3 Pole, 4 Wires, IP67 Enclosure, -40 to 203 deg F, Screw Terminal, DuraV , Yellow
Additional Description: TB -9P54U2 50A,PLG,3P4W,DG,U2,3P250V
Catalog Description: DuraGard Male Plug, 50 Amp, 3 Pole 4 Wire, 3 Phase 250V
Item FeaturesFor use where electrical connections need protection from water and/or dust entrance to the contacts or the wiring compartment, wash down duty, chemical, outdoor, industrial and marine applications
Item Features
Item FeaturesUL 1682/746C/630 File No. E47956/E2630|CSA File No. LL14096|UL94 V-0 Flammability Rating
