Part Number # 9R33U0W
SKU # 2293908
9R33U0W

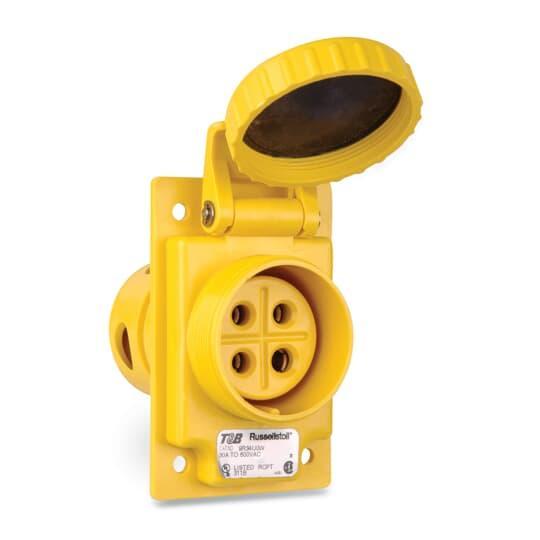

Thomas & Betts 9R33U0W Russellstoll DuraGard Pin and Sleeve Receptacle
Part Number # 9R33U0W
SKU # 2293908
Thomas & Betts 9R33U0W Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 9R33U0W |
| SKU #: | 2293908 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 4.14 in H x 2.66 in W x 4.12 in D |
| Frequency Rating: | 60, 60 Hz |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 203, -40 to 203 deg F |
| Terminal Type: | Screw |
| Type: | Female Reverse Service Standard Watertight Waterproof |
| Country of origin: | MX |
| Material: | DuraV, DuraV® |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121406 |
| UPC: | 00708917242574 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 9R33U0W Russellstoll DuraGard Pin and Sleeve Receptacle
Brand: Thomas & Betts
Part Number: 9R33U0W
Russellstoll DuraGard Pin and Sleeve Receptacle, Female Reverse Service Standard Watertight Waterproof, 600 VAC, 250 VDC, 30 A, 60 Hz Frequency, 2 Pole, 3 Wires, -40 to 203 deg F, Screw Terminal, DuraV , 4.14 in H x 2.66 in W x 4.12 in D Dimensions
Additional Description: TB -9R33U0W (N) 30A,REC,2P3W,DG,U0,600V,SC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: DuraGard 30Amp, Watertight, Female Receptical- through 600VAC/250VDC
9R33U0W Application
For use where electrical connections need protection from water and/or dust entrance to the contacts or the wiring compartment9R33U0W Item Features
- Not just "watertight" waterproof for washdown duty (DurORing Sealing) that eliminates the need for costly "weather boots" or "adapters"
- DuraV high impact body and collars, thermoset interior
- For use where electrical connections need protection from water and/or dust entrance to the contacts or the wiring compartment
- For washdown and light marine applications watertight/waterproof such as food processing plants, bottling and beverage plants, pulp and paper factories, pharmaceutical manufacturing, barge and workboat applications and outdoor construction sites
- For use with computer systems data center and OEM products such as raised floor applications, main power connections and critical power for test, instrumentation, telephone and medical equipment
- Computer system interconnections
- 0.7 in ID bushing
SKU #2293908Part Number #9R33U0WUNSPSC39121406UPC00708917242574
Image provided may only be a representation of final product and may include optional equipment
