Part Number # A250-TB
SKU # 2196931
Image provided may only be a representation of
final product and may include optional equipment
A250-TB

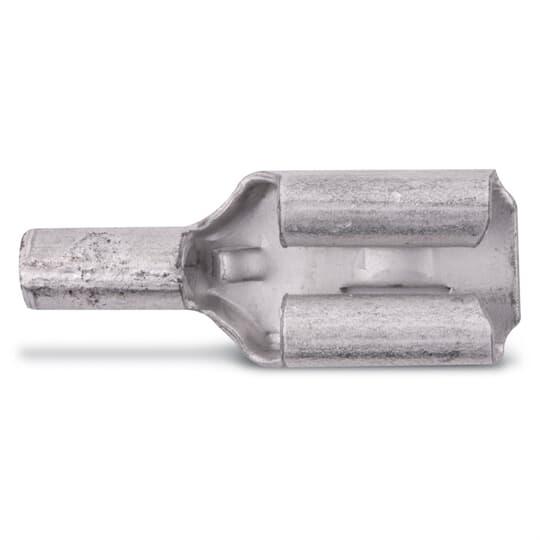

Thomas & Betts A250-TB Sta-Kon Female Disconnect
Part Number # A250-TB
SKU # 2196931
Thomas & Betts A250-TB Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | A250-TB |
| SKU #: | 2196931 |
| Barrel Type: | Brazed Seam |
| Conductor Size: | 22 to 18, 22 to 18 AWG |
| Dimensions: | 0.73 in L x 0.31 in W |
| Finish: | Electroplated Tin |
| Insulated: | Non-Insulated |
| Series: | 250 |
| Specifications: | 0.03 in THK Stock |
| Temperature Rating (Degrees F): | 150, 150 deg C |
| Terminal Type: | Crimp |
| Country of origin: | US |
| Material: | Brass |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121447 |
| UPC: | 00786210808512 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts A250-TB Sta-Kon Female Disconnect
Brand: Thomas & Betts
Part Number: A250-TB
Sta-Kon Female Disconnect, Series: 250, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 600 VAC, 0.03 in THK Stock, 150 deg C, Brass, Metallic, Electroplated Tin, 0.73 in L x 0.31 in W, Insulated: Non-Insulated
Additional Description: TB -A250-TB NONINS FEM 250 DISC No22-18 LEN .73 .73, TAB
Catalog Description: Non-Insulated Female Disconnect, Length .73 Inches, Width .31 Inches, Tab Size .250x.032, Wire Range #22-#18 AWG, Copper, Tin Plated, 1,000 Pack
A250-TB Item Features
- Unique construction of the female disconnect offers long term dependability
- Funnel entry insulators enable easier inserting of wire into barrel
- Brazed seam serrated barrel provides maximum tensile strength
- Suitable for use with WT110M, WT111M, WT112M, WT2000, ERG4002 tools
- Color-coded for easy installation
A250-TB Standards
UL File No. E66716|CSA Certified|UL 94 V-0 Flammability RatingSKU #2196931Part Number #A250-TBUNSPSC39121447UPC00786210808512
