Part Number # ADR11-32
SKU # 398494
Image provided may only be a representation of
final product and may include optional equipment
ADR11-32

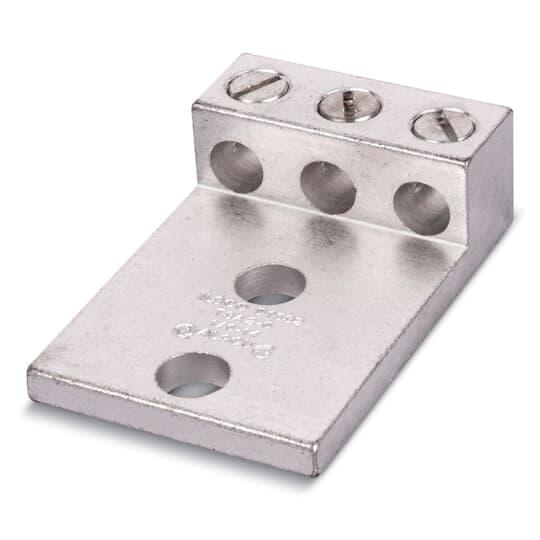

Thomas & Betts ADR11-32 Blackburn Mechanical Connector
Part Number # ADR11-32
SKU # 398494
Thomas & Betts ADR11-32 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | ADR11-32 |
| SKU #: | 398494 |
| Conductor Size: | 14 to 1/0, 14 to 1/0 AWG |
| Conductor Type: | Aluminum/Stranded Copper |
| Dimensions: | 2-29/32 in L x 1-15/16 in W x 7/8 in H |
| Finish: | Tin Plated |
| Specifications: | 3-Conductor, 45/64 in Hole Spacing |
| Tongue Size: | 2-5/32 in L x 1-15/16 in W x 1/4 in THK |
| Tongue Type: | Straight |
| Type: | Type ADR-ALCUL Dual Rated |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121408 |
| UPC: | 00783786610068 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts ADR11-32 Blackburn Mechanical Connector
Brand: Thomas & Betts
Part Number: ADR11-32
Blackburn Mechanical Connector, Type ADR-ALCUL Dual Rated, Aluminum/Stranded Copper Conductor, 14 to 1/0 AWG Conductor, 3/8 in Stud, 2 Bolt Holes, 2-5/32 in L x 1-15/16 in W x 1/4 in THK Tongue, Straight Tongue, 3-Conductor, 45/64 in Hole Spacing, Aluminum, Tin Plated, 2-29/32 in L x 1-15/16 in W x 7/8 in H
Additional Description: TB -ADR11-32 AL 3CNDTR 2HOLE MOUNT 1/0-14
Catalog Description: Type ADR-ALCUL Three-Conductor, Two-Hole Mount for Conductor Range Max 1/0 Str., Min 14 AWG
ADR11-32 Item Features
- Easy installation - no special tools required
- NEMA spacing 1 in centers
- Connectors accommodating conductors 600 kcmil and larger have double rows of set screws
- Extra aluminum lug
- Tin plated for low contact resistance
- 2 stud of 3/8 in
ADR11-32 Standards
UL E9809SKU #398494Part Number #ADR11-32UNSPSC39121408UPC00783786610068
