Part Number # ADR21
SKU # 2178
ADR21

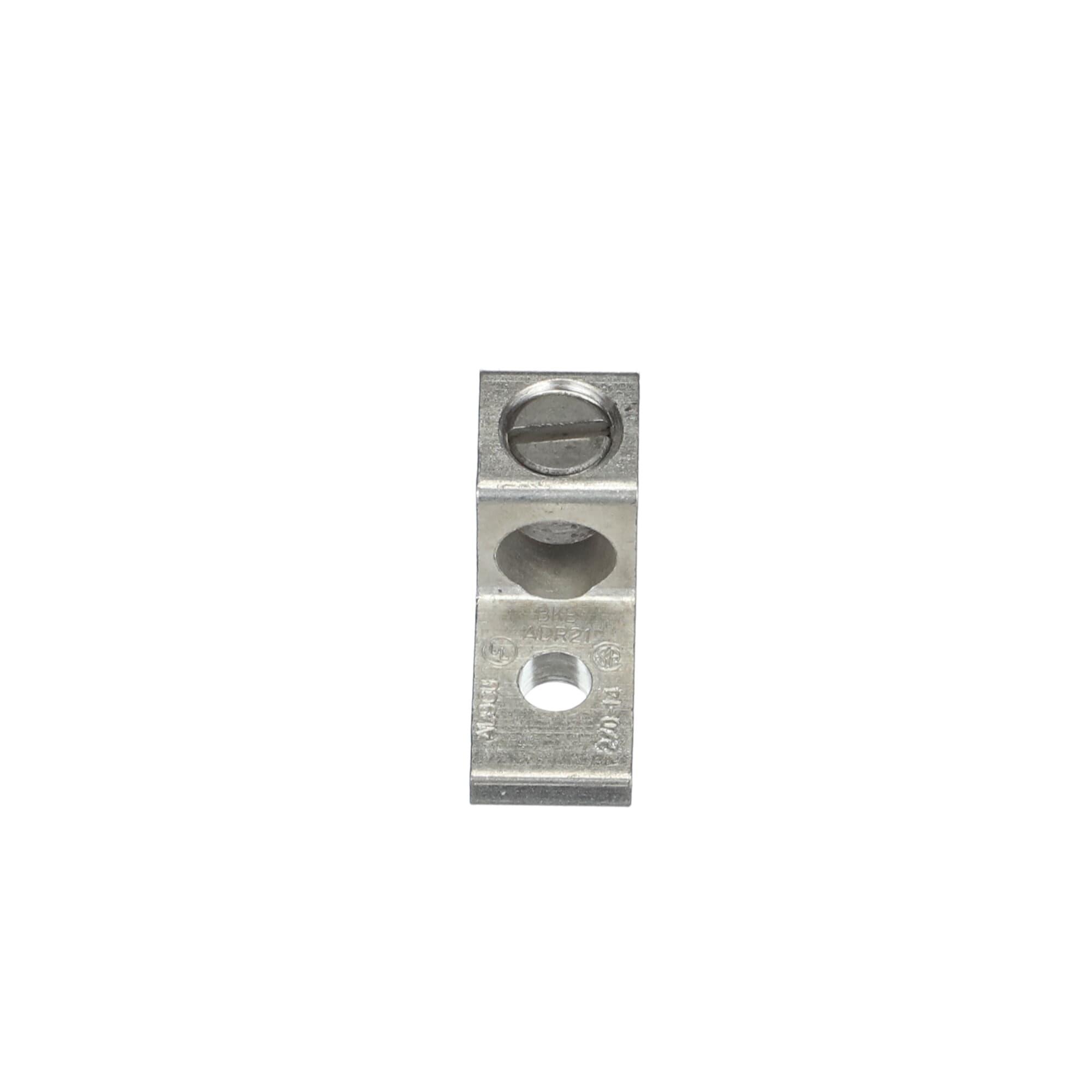

Thomas & Betts ADR21 Blackburn Mechanical Connector
Part Number # ADR21
SKU # 2178
Thomas & Betts ADR21 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | ADR21 |
| SKU #: | 2178 |
| Conductor Size: | 14 to 2/0, 14 to 2/0 AWG |
| Conductor Type: | Aluminum/Stranded Copper |
| Dimensions: | 1-15/32 in L x 5/8 in W x 25/32 in H |
| Finish: | TiN Coated |
| Specifications: | 1-Conductor, Slotted Screw, 1/4 in Hole Spacing |
| Tongue Size: | 27/32 in L x 5/8 in W x 3/16 in THK |
| Tongue Type: | Straight |
| Type: | Type ADR-ALCUL Dual Rated |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121408 |
| UPC: | 00783786610082 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts ADR21 Blackburn Mechanical Connector
Brand: Thomas & Betts
Part Number: ADR21
Blackburn Mechanical Connector, Type ADR-ALCUL Dual Rated, Aluminum/Stranded Copper Conductor, 14 to 2/0 AWG Conductor, 1/4 in Stud, 1 Bolt Holes, 27/32 in L x 5/8 in W x 3/16 in THK Tongue, Straight Tongue, 600 VAC, 1-Conductor, Slotted Screw, 1/4 in Hole Spacing, Aluminum, Tin Coated, 1-15/32 in L x 5/8 in W x 25/32 in H
Additional Description: TB -ADR21 AL 1CNDTR 2/0-14 AWG
Catalog Description: Type ADR-ALCUL Single-Conductor, One-Hole Mount, Conductor Range 14 AWG-2/0 Str, Length 1-15/32 Inches, Width 5/8 Inch, Height 25/32 Inch, 1/4 Inch Bolt Hole, Slotted Screw, Tin Plated
ADR21 Item Features
- Easy installation - no special tools required
- Tin plated for low contact resistance
- Slotted screw-on lugs up through 2/0 stranded
ADR21 Standards
UL E9809 / UL E9809SKU #2178Part Number #ADR21UNSPSC39121408UPC00783786610082
Image provided may only be a representation of final product and may include optional equipment
