ADR21ARH

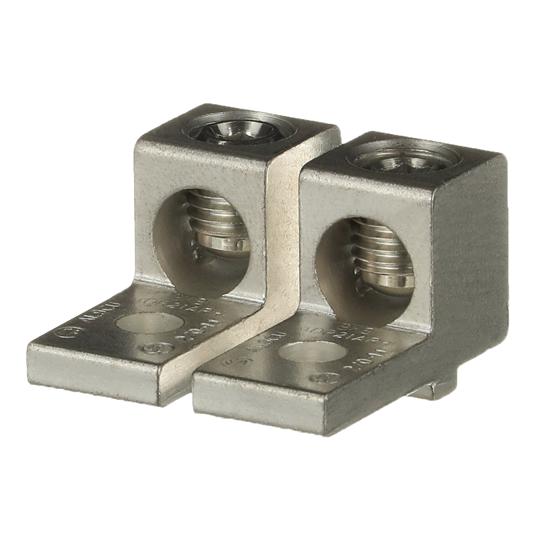

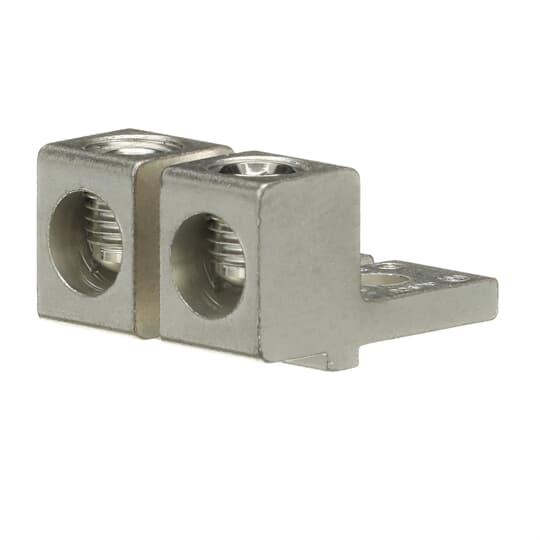

Thomas & Betts ADR21ARH Blackburn Mechanical Lug Connector
Part Number # ADR21ARH
SKU # 2271741
Thomas & Betts ADR21ARH Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | ADR21ARH |
| SKU #: | 2271741 |
| Conductor Size: | 14 AWG Min, 2/0 AWG Max |
| Conductor Type: | Aluminum/Copper/Stranded |
| Dimensions: | 1-15/32 in L |
| Finish: | TiN Coated |
| Specifications: | (1) Conductor |
| Tongue Size: | 7/16 in L x 5/8 in W x 3/16 in THK |
| Type: | Type ADR-ALCUL |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121408 |
| UPC: | 00783786416134 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts ADR21ARH Blackburn Mechanical Lug Connector
Brand: Thomas & Betts
Part Number: ADR21ARH
Blackburn Mechanical Lug Connector, Type ADR-ALCUL, Aluminum/Copper/Stranded Conductor, 14 AWG Min, 2/0 AWG Max Conductor, 1/4 in Stud, 1 Bolt Holes, 7/16 in L x 5/8 in W x 3/16 in THK Tongue, (1) Conductor, Aluminum, TiN Coated, 1-15/32 in L
Additional Description: TB -ADR21ARH ADR21AR WITH HEX HEAD SCREW
Catalog Description: Type ADR-Anti-Rotational ALCUL Single-Conductor, One-Hole Mount, Conductor Range Max 2/0 Str, Min 14 AWG, 1/4 Inch Bolt Hole, Hex Head Screw, Tin Plated,
ADR21ARH Includes
Hex ScrewsADR21ARH Item Features
- Easy installation
- 14 AWG min, 2/0 AWG stranded max
- Dual-rated conductors
- Unique bottom rib keeps the conductor from turning
- Eliminates the need for excessive torque, which can damage large conductors
ADR21ARH Standards
BAA Compliant|UL E9809ADR21ARH Warranty
2 years LimitedSKU #2271741Part Number #ADR21ARHUNSPSC39121408UPC00783786416134
