Part Number # ADR30
SKU # 140672
ADR30

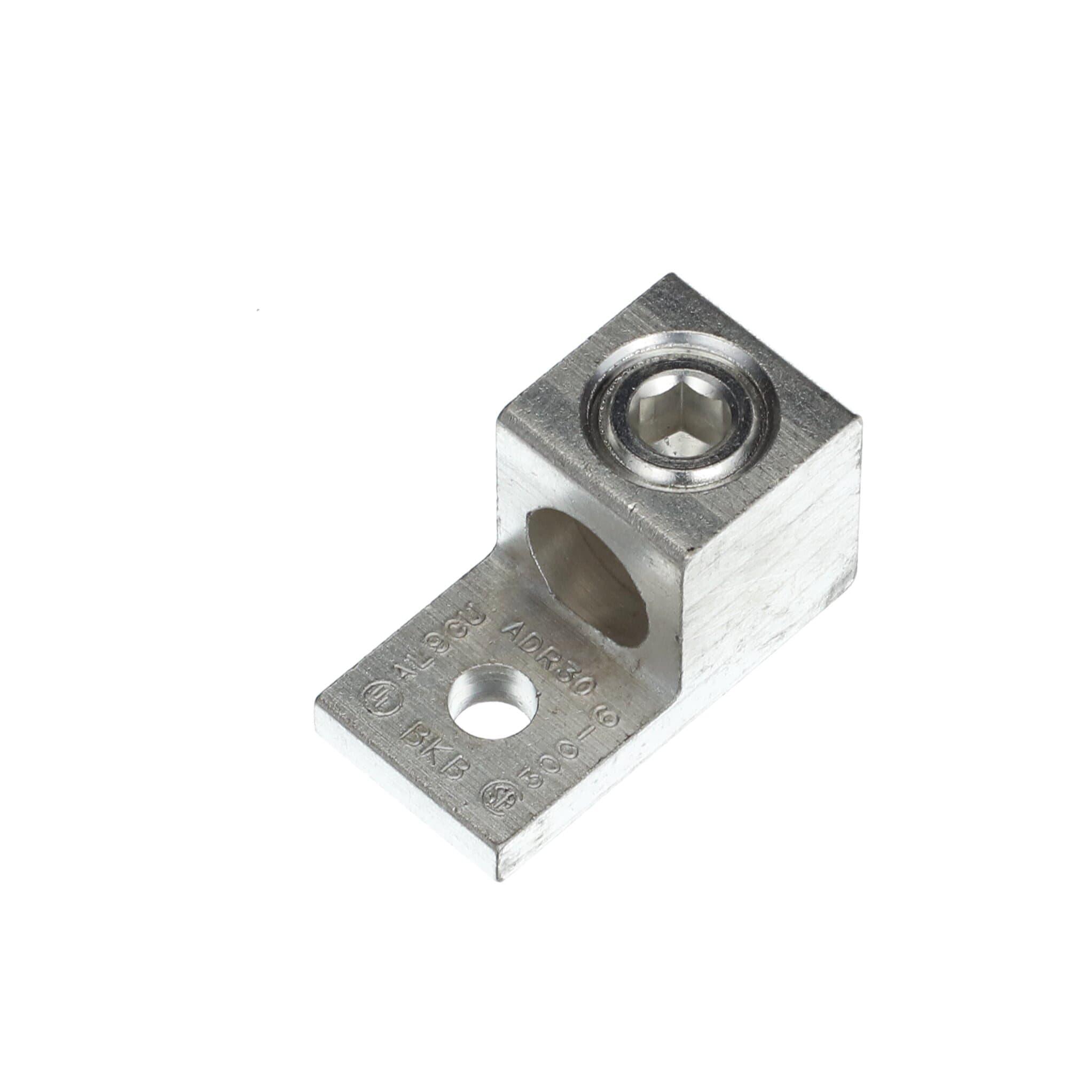

Thomas & Betts ADR30 Blackburn Mechanical Connector
Part Number # ADR30
SKU # 140672
Thomas & Betts ADR30 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | ADR30 |
| SKU #: | 140672 |
| Conductor Size: | 6 AWG to 300 kcmil |
| Conductor Type: | Aluminum/Stranded Copper |
| Dimensions: | 2 in L x 1 in W x 1-1/8 in H |
| Finish: | Tin Plated |
| Specifications: | 1-Conductor, Socket Screw |
| Tongue Size: | 1 in L x 1 in W x 1/4 in THK |
| Tongue Type: | Straight |
| Type: | Type ADR-ALCUL Dual-Rated |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121408 |
| UPC: | 00783786610167 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts ADR30 Blackburn Mechanical Connector
Brand: Thomas & Betts
Part Number: ADR30
Blackburn Mechanical Connector, Type ADR-ALCUL Dual-Rated, Aluminum/Stranded Copper Conductor, 6 AWG to 300 kcmil Conductor, 5/16 in Stud, 1 Bolt Holes, 1 in L x 1 in W x 1/4 in THK Tongue, Straight Tongue, 600 VAC, 1-Conductor, Socket Screw, Aluminum, Tin Plated, 2 in L x 1 in W x 1-1/8 in H
Additional Description: TB -ADR30 AL 1CNDTR 1HOLE MOUNT 6-300STR TP
Catalog Description: Type ADR-ALCUL Single-Conductor, One-Hole Mount, Conductor Range 6 Str-300 kcmil, Length 2.0 Inches, Width 1.0 Inch, Height 1-1/8 Inches, Socket Screw, Tin Plated
ADR30 Item Features
- Easy installation no special tools required
- Tin plated for low contact resistance
- Extra aluminum lug
- 5/16 in socket screw on sizes 250 through 350 kcmil
- 1 stud of 5/16 in
ADR30 Standards
UL E9809SKU #140672Part Number #ADR30UNSPSC39121408UPC00783786610167
Image provided may only be a representation of final product and may include optional equipment
