ADR35-44

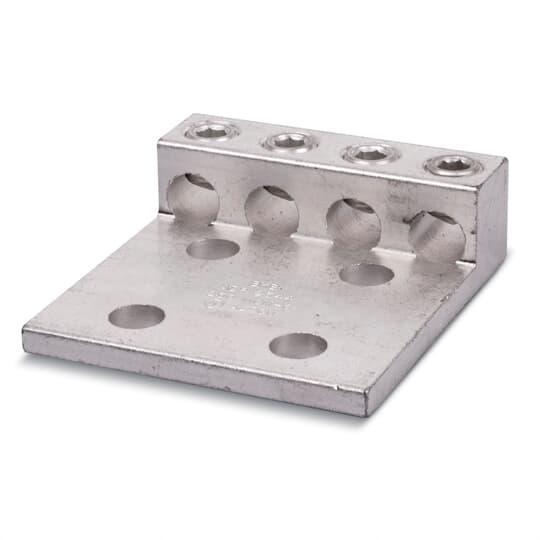

Thomas & Betts ADR35-44 Blackburn Mechanical Connector
Part Number # ADR35-44
SKU # 399379
Thomas & Betts ADR35-44 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | ADR35-44 |
| SKU #: | 399379 |
| Conductor Size: | 6 AWG to 350 kcmil |
| Conductor Type: | Aluminum/Stranded Copper |
| Dimensions: | 4-1/4 in L x 4-23/32 in W x 1-3/8 in H |
| Finish: | Tin Plated |
| Specifications: | 4-Conductor, 1-7/32 in Hole Spacing |
| Tongue Size: | 3 in L x 4-23/32 in W x 5/16 in THK |
| Tongue Type: | Straight |
| Type: | Type ADR-ALCUL Dual Rated |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121408 |
| UPC: | 00783786610266 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts ADR35-44 Blackburn Mechanical Connector
Brand: Thomas & Betts
Part Number: ADR35-44
Blackburn Mechanical Connector, Type ADR-ALCUL Dual Rated, Aluminum/Stranded Copper Conductor, 6 AWG to 350 kcmil Conductor, 1/2 in Stud, 4 Bolt Holes, 3 in L x 4-23/32 in W x 5/16 in THK Tongue, Straight Tongue, 4-Conductor, 1-7/32 in Hole Spacing, Aluminum, Tin Plated, 4-1/4 in L x 4-23/32 in W x 1-3/8 in H
Additional Description: TB -ADR35-44 AL 4CNDTR 4HOLE MOUNT 6-350STR
Catalog Description: Type ADR-ALCUL Four-Conductor, Four-Hole Mount for Conductor Range Max 350 kcmil, Min 6 Str.
ADR35-44 Item Features
- Easy installation - no special tools required
- NEMA spacing 1-3/4 in centers
- Connectors accommodating conductors 600 kcmil and larger have double rows of set screws
- Extra aluminum lug
- Tin plated for low contact resistance
- 4 stud of 1/2 in
ADR35-44 Standards
CSA Certified|UL File No. E9809SKU #399379Part Number #ADR35-44UNSPSC39121408UPC00783786610266
