Part Number # ADR6
SKU # 932413
ADR6

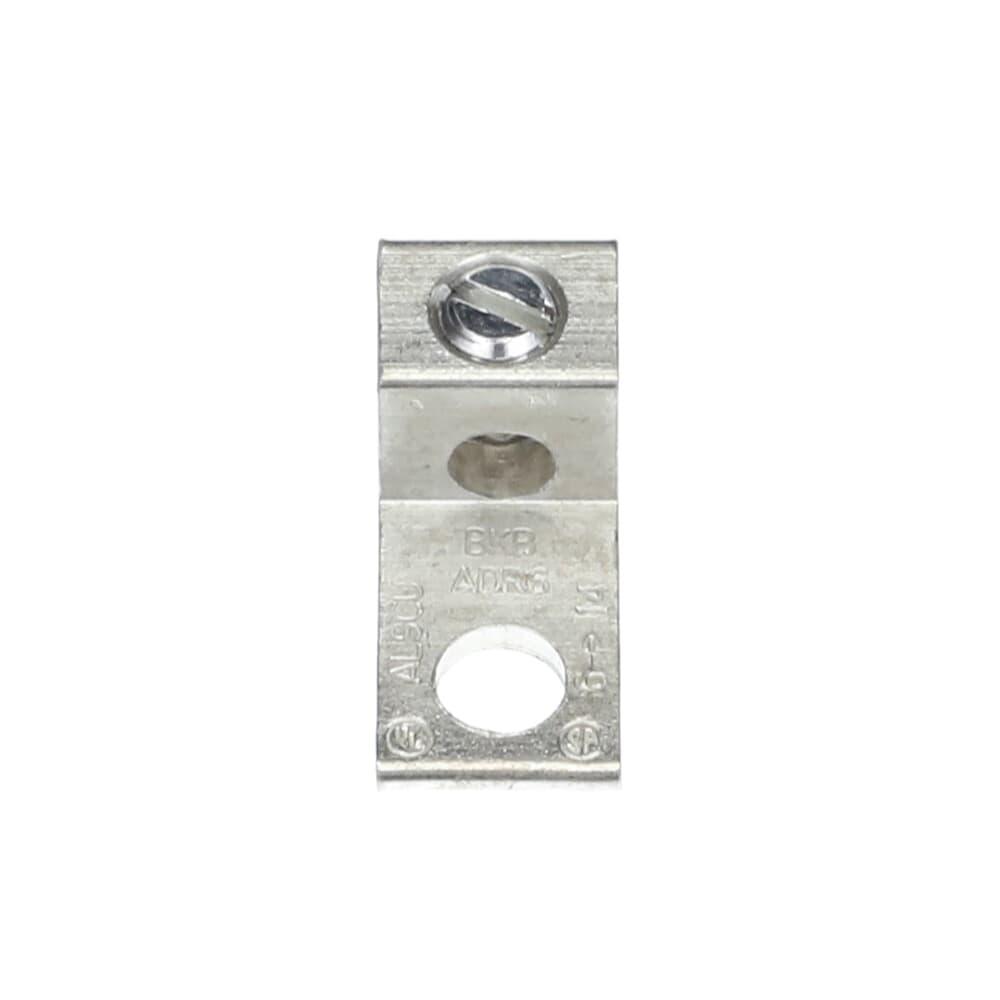

Thomas & Betts ADR6 Blackburn Mechanical Connector
Part Number # ADR6
SKU # 932413
Thomas & Betts ADR6 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | ADR6 |
| SKU #: | 932413 |
| Conductor Size: | 14 to 6, 14 to 6 AWG |
| Conductor Type: | Aluminum/Stranded Copper |
| Dimensions: | 1-3/64 in L x 1/2 in W x 31/64 in H |
| Finish: | Tin Plated |
| Specifications: | 1-Conductor, Slotted Screw |
| Tongue Size: | 43/64 in L x 1/2 in W x 5/64 in THK |
| Tongue Type: | Straight |
| Type: | Type ADR-ALCUL Dual-Rated |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121408 |
| UPC: | 00783786610013 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts ADR6 Blackburn Mechanical Connector
Brand: Thomas & Betts
Part Number: ADR6
Blackburn Mechanical Connector, Type ADR-ALCUL Dual-Rated, Aluminum/Stranded Copper Conductor, 14 to 6 AWG Conductor, 1/4 in Stud, 1 Bolt Holes, 43/64 in L x 1/2 in W x 5/64 in THK Tongue, Straight Tongue, 600 VAC, 1-Conductor, Slotted Screw, Aluminum, Tin Plated, 1-3/64 in L x 1/2 in W x 31/64 in H
Additional Description: TB -ADR6 AL TP 1CNDTR 1HOLE MOUNT 14-6
Catalog Description: Type ADR-ALCUL Single-Conductor, One-Hole Mount, Conductor Range 14 AWG-6 Str, Length 1-3/64 Inches, Width 1/2 Inch, Height 31/64 Inch, Slotted Screw, Tin Plated
ADR6 Item Features
- Easy installation no special tools required
- Tin plated for low contact resistance
- Extra aluminum lug
- Slotted screw on lugs up through 2/0 stranded
- 1 stud of 1/4 in
ADR6 Standards
UL E9809SKU #932413Part Number #ADR6UNSPSC39121408UPC00783786610013
Image provided may only be a representation of final product and may include optional equipment
