Part Number # ADR6004
SKU # 82148
Image provided may only be a representation of
final product and may include optional equipment
ADR6004

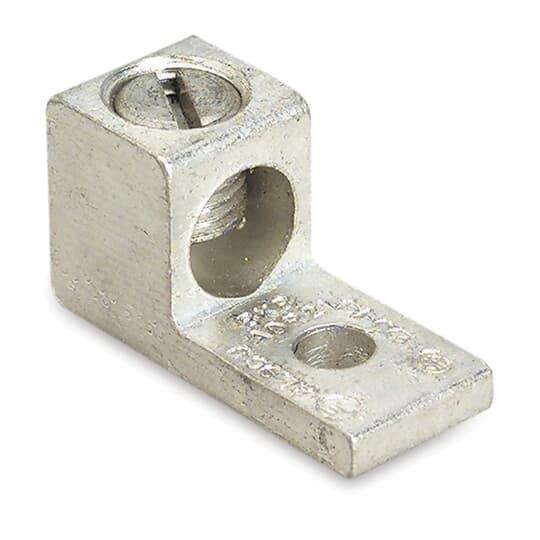

Thomas & Betts ADR6004 Blackburn Mechanical Connector
Part Number # ADR6004
SKU # 82148
Thomas & Betts ADR6004 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | ADR6004 |
| SKU #: | 82148 |
| Conductor Size: | 4 AWG to 600 kcmil |
| Conductor Type: | Aluminum/Stranded Copper |
| Dimensions: | 2-13/16 in L x 1-3/8 in W x 1-13/16 in H |
| Finish: | Tin Plated |
| Specifications: | 1-Conductor |
| Tongue Size: | 1-1/2 in L x 1-3/8 in W x 5/16 in THK |
| Tongue Type: | Straight |
| Type: | Type ADR-ALCUL Dual Rated |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121408 |
| UPC: | 00783786610532 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts ADR6004 Blackburn Mechanical Connector
Brand: Thomas & Betts
Part Number: ADR6004
Blackburn Mechanical Connector, Type ADR-ALCUL Dual Rated, Aluminum/Stranded Copper Conductor, 4 AWG to 600 kcmil Conductor, 3/8 in Stud, 1 Bolt Holes, 1-1/2 in L x 1-3/8 in W x 5/16 in THK Tongue, Straight Tongue, 600 VAC, 1-Conductor, Aluminum, Tin Plated, 2-13/16 in L x 1-3/8 in W x 1-13/16 in H
Additional Description: TB -ADR6004 (N) AL TP 1CNDTR 1HOLE MOUNT 4-600 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Type ADR-ALCUL Single-Conductor, One-Hole Mount, Conductor Range Max 600 kcmil, (2) 250 kcmil, Min 4 Str. (2) 1/0 Str.
ADR6004 Includes
3/8 in Hex Socket ScrewADR6004 Item Features
- Easy installation - no special tools required
- Tin plated for low contact resistance
- Extra aluminum lug
- Contains 3/8 in hex socket screw on sizes 500 kcmil and above
- 1 stud of 3/8 in
- 4 - (2) 1/0 Stranded, 600 - (2) 250 kcm
- Easy installation
- No special tools required
ADR6004 Standards
UL E9809SKU #82148Part Number #ADR6004UNSPSC39121408UPC00783786610532
