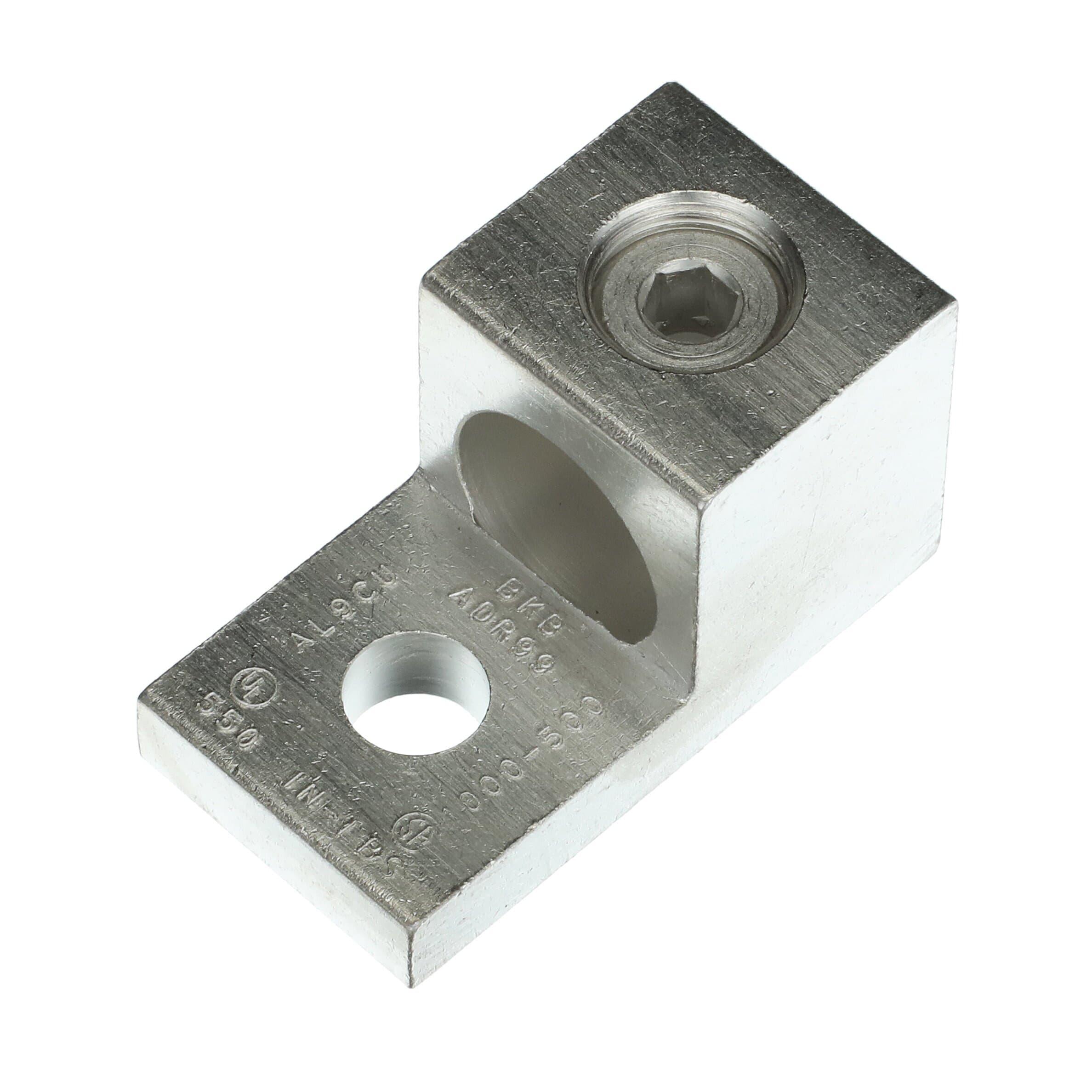

Thomas & Betts ADR99 Blackburn Mechanical Connector
Image Disclaimers Message
Thomas & Betts ADR99 Blackburn Mechanical Connector
Thomas & Betts ADR99 Blackburn Mechanical Connector
Part #:ADR99
SKU #: 2193473
Key Features
Part #:ADR99
SKU #: 2193473
Brand: Thomas & Betts
Conductor Size: 500 to 1000, 500 to 1000 kcmil
Conductor Type: Aluminum/Copper
Dimensions: 3-3/8 in L x 1-3/4 in W x 1-15/16 in H
Finish: Tin Plated
Specifications: 1-Conductor
- Easy installation no special tools required
- Tin plated for low contact resistance
- Extra aluminum lug
- Contains 3/8 in hex socket screw on sizes 500 kcmil and above
- 1 stud of 5/8 in
Thomas & Betts ADR99 Blackburn Mechanical Connector
Blackburn Mechanical Connector, Type ADR-ALCUL Dual-Rated, Aluminum/Copper Conductor, 500 to 1000 kcmil Conductor, 5/8 in Stud, 1 Bolt Holes, 1-3/4 in L x 1-3/4 in W x 9/16 in THK Tongue, Straight Tongue, 600 VAC, 1-Conductor, Aluminum, Tin Plated, 3-3/8 in L x 1-3/4 in W x 1-15/16 in H
Additional Description: TB -ADR99 AL 1CNDTR 1HOLE MOUNT 500-1000
Catalog Description: Type ADR-ALCUL Single-Conductor, One-Hole Mount for Conductor Range Max 1000 kcmil, Min 500 kcmil
