Part Number # ASC1/0TN
SKU # 2369941
Image Disclaimers Message
ASC1/0TN

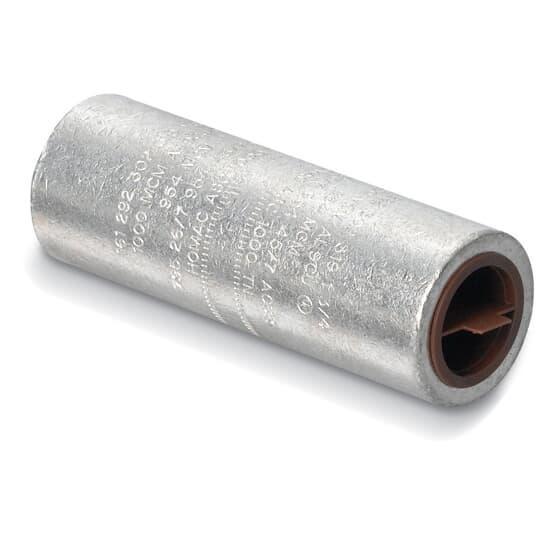

Thomas & Betts ASC1/0TN Homac Splice
Part Number # ASC1/0TN
SKU # 2369941
Thomas & Betts ASC1/0TN Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | ASC1/0TN |
| SKU #: | 2369941 |
| Conductor Size: | 1/0, 1/0 AWG |
| Conductor Type: | Aluminum/Copper/Stranded |
| Connector Type: | Compression |
| Dimensions: | 5/8 in Dia |
| Finish: | TiN Coated, Tin Plated |
| Specifications: | (2) Conductors, 31/32 in L Barrel, 2-Conductors, 31/32 in L Barrel |
| Type: | Straight |
| Country of origin: | US |
| Length: | 2-1/4 in, 2-1/8 |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121449 |
| UPC: | 00783786695744 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts ASC1/0TN Homac Splice
Brand: Thomas & Betts
Part Number: ASC1/0TN
Blackburn Cable Splice, Straight, Aluminum/Copper/Stranded Conductor, 1/0 AWG Conductor, Die Code: TU, 52, BG, 243, 5/8, 2-1/4 in Length, Compression Connector, Specifications: 2-Conductors, 31/32 in L Barrel, Aluminum, Tin Plated, 5/8 in Dia Dimensions
Additional Description: TB -ASC 1/0 TN (N) AL Comp Splice TinPlate 1/0 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Tin Plated Aluminum Straight Splices, 1/0 Stranded AL9CU, installing dies TU, 52, BG, 243, 5/8. Length 2-1/8 inch. Outside Diameter 5/8 inch. Oil Stop. Oxide Inhibitor. Tan Caps.
ASC1/0TN Includes
Oil Stop and Tan CapASC1/0TN Item Features
- Pre-filled with oxide inhibitor
- Dual-rated for aluminum and copper conductors
ASC1/0TN Standards
ANSI C119.4ASC1/0TN Warranty
2 years LimitedSKU #2369941Part Number #ASC1/0TNUNSPSC39121449UPC00783786695744
