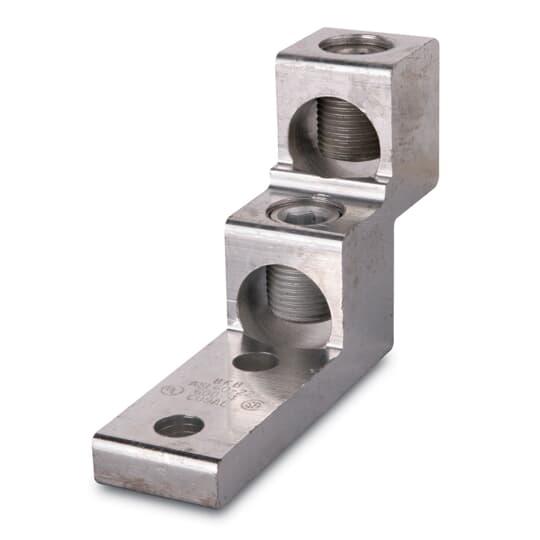

Thomas & Betts ASL60-22 Blackburn Mechanical Connector
Image Disclaimers Message
Thomas & Betts ASL60-22 Blackburn Mechanical Connector
Thomas & Betts ASL60-22 Blackburn Mechanical Connector
Part #:ASL60-22
SKU #: 76936
Key Features
Part #:ASL60-22
SKU #: 76936
Brand: Thomas & Betts
Conductor Size: 2 AWG to 600 kcmil
Conductor Type: Aluminum/Stranded Copper
Dimensions: 4-29/32 in L x 1-1/2 in W x 3 in H
Finish: Tin Plated
Specifications: 2-Conductor
- Easy installation - no special tools required
- Tin plated for low contact resistance
- 2 stud of 13/32 in
Thomas & Betts ASL60-22 Blackburn Mechanical Connector
Blackburn Mechanical Connector, Type ASL-ALCUL Dual Rated, Aluminum/Stranded Copper Conductor, 2 AWG to 600 kcmil Conductor, 13/32 in Stud, 2 Bolt Holes, 1-1/2 in W x 3/8 in THK Tongue, Straight Tongue, Specifications: 2-Conductor, Aluminum, Tin Plated, 4-29/32 in L x 1-1/2 in W x 3 in H Dimensions
Additional Description: TB -ASL60-22 AL 2CNDTR 2HOLE MOUNT 2STR-600
Catalog Description: Type ASL-ALCUL Two-Conductor, Two-Hole Mount for Conductor Range Max 600 kcmil, Min 2 Str.
