Part Number # ASL75-42
SKU # 76792
Image Disclaimers Message
ASL75-42

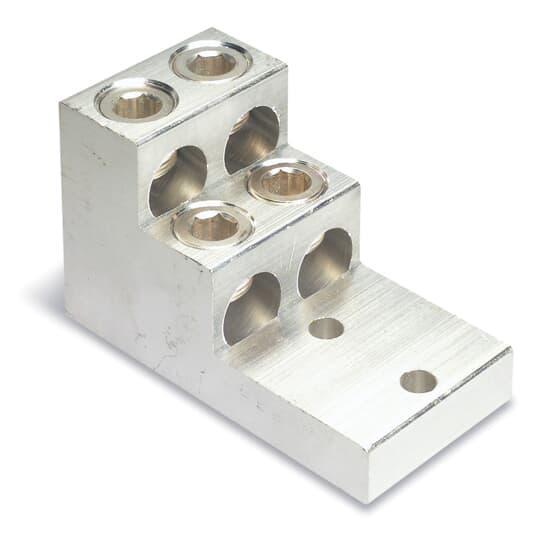

Thomas & Betts ASL75-42 Blackburn Mechanical Connector
Part Number # ASL75-42
SKU # 76792
Thomas & Betts ASL75-42 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | ASL75-42 |
| SKU #: | 76792 |
| Conductor Size: | 3/0 AWG to 750 kcmil |
| Conductor Type: | Aluminum/Stranded Copper |
| Dimensions: | 4-29/32 in L x 2-5/8 in W x 3 in H |
| Finish: | Tin Plated |
| Specifications: | 4-Conductor |
| Tongue Size: | 2-5/8 in W x 3/4 in THK |
| Tongue Type: | Straight |
| Type: | Type ASL-ALCUL Dual Rated |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121408 |
| UPC: | 00783786133208 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts ASL75-42 Blackburn Mechanical Connector
Brand: Thomas & Betts
Part Number: ASL75-42
Blackburn Mechanical Connector, Type ASL-ALCUL Dual Rated, Aluminum/Stranded Copper Conductor, 3/0 AWG to 750 kcmil Conductor, 13/32 in Stud, 2 Bolt Holes, 2-5/8 in W x 3/4 in THK Tongue, Straight Tongue, Specifications: 4-Conductor, Aluminum, Tin Plated, 4-29/32 in L x 2-5/8 in W x 3 in H Dimensions
Additional Description: TB -ASL75-42 AL 4CNDTR 2HOLE MOUNT 3/0STR-750
Catalog Description: Type ASL-ALCUL Four-Conductor, Two-Hole Mount for Conductor Range Max 750 kcmil, Min 3/0 Str.
ASL75-42 Item Features
- Easy installation - no special tools required
- Tin plated for low contact resistance
- 2 stud of 13/32 in
ASL75-42 Standards
CSA Certified|UL File No. E9809SKU #76792Part Number #ASL75-42UNSPSC39121408UPC00783786133208
