Part Number # ATL102
SKU # 2229069
Image Disclaimers Message
Brand: Thomas & Betts
ATL102

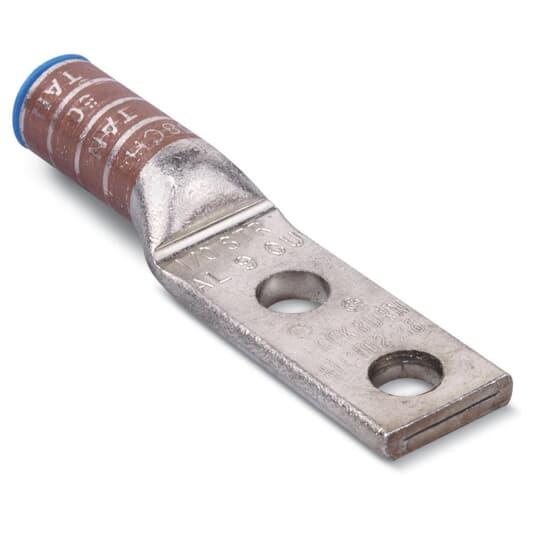

Thomas & Betts ATL102 Blackburn Compression Lug
Part Number # ATL102
SKU # 2229069
$272.74 / 10Each
Typical price:$365.47 / Each
Thomas & Betts ATL102 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | ATL102 |
| SKU #: | 2229069 |
| Barrel Size: | 1-3/16 in L |
| Barrel Type: | Standard |
| Conductor Size: | 1/0, 1/0 AWG |
| Conductor Type: | Aluminum/Stranded, Stranded Aluminum |
| Overall Length: | 4-9/16, 4-9/16 in |
| Series: | ATL |
| Specifications: | 1-3/4 in Hole Spacing, 1-3/4 in Hole Spacing, Tin Plated |
| Tongue Size: | 3 in L x 15/16 in W x 3/16 in THK |
| Tongue Type: | Straight |
| Type: | 2-Hole |
| Color: | Tan |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00783786611027 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$272.74 / 10Each
Typical price:$365.47 / Each
Quantity:
- Color-Keyed Compression Lug, 2-Hole, Series: ATL, Stranded Aluminum Conductor, 1/0 AWG Conductor, 35 kV, 1/2 in Stud, Straight Tongue, 3 in L x 15/16 in W x 3/16 in THK Tongue, 4-9/16 in Overall Length, Standard Barrel, 1-3/16 in L Barrel, Specifications: 1-3/4 in Hole Spacing, Tin Plated, Aluminum, Tan
ATL102 Item Features
- Specifically designed for use with aluminum conductors (concentric, compressed or compact)
- Also listed for use with copper conductors
- Made of high conductivity seamless aluminum tubing
- Chamfered barrels for ease of installation
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- Color coded for quick, easy die identification
- Prefilled with oxide-inhibitor
- Tin plated for corrosion-resistance
ATL102 Standards
CSA Certified|UL File No. E9809SKU #2229069Part Number #ATL102UNSPSC39121405UPC00783786611027
