Part Number # ATL30-38
SKU # 2222466
ATL30-38
Thomas & Betts ATL30-38 Blackburn Compression Connector Lug
Part Number # ATL30-38
SKU # 2222466
Thomas & Betts ATL30-38 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | ATL30-38 |
| SKU #: | 2222466 |
| Barrel Size: | 1-11/32 in L |
| Barrel Type: | Standard |
| Conductor Size: | 3/0, 3/0 AWG |
| Conductor Type: | Aluminum/Stranded, Stranded Aluminum |
| Overall Length: | 2-13/16, 2-13/16 in |
| Series: | ATL |
| Specifications: | Tin Plated, Tin Plated Finish |
| Tongue Size: | 1-1/16 in L x 1-1/16 in W x 7/32 in THK |
| Tongue Type: | Straight |
| Type: | 1-Hole |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00783786610990 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts ATL30-38 Blackburn Compression Connector Lug
Brand: Thomas & Betts
Part Number: ATL30-38
Color-Keyed Compression Lug Connector, 1-Hole, Series: ATL, Stranded Aluminum Conductor, 3/0 AWG Conductor, 35 kV, 3/8 in Stud, Straight Tongue, 1-1/16 in L x 1-1/16 in W x 7/32 in THK Tongue, 2-13/16 in Overall Length, Standard Barrel, 1-11/32 in L Barrel, Specifications: Tin Plated, Aluminum, Ruby
Additional Description: TB -ATL30-38 (N) 3/0 AL TP COMP LUG 1HL 3/8IN RUBY NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Type ATL Aluminum One-Hole Lug, Max 35kV, Wire Size 3/0 Str, 3/8 Inch Bolt Hole, Tin Plated, Die Color Code Ruby
ATL30-38 Item Features
- Specifically designed for use with aluminum conductors (concentric, compressed or compact)
- Also listed for use with copper conductors
- Made of high conductivity seamless aluminum tubing
- Chamfered barrels for ease of installation
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- Color coded for quick, easy die identification
- Prefilled with oxide-inhibitor
- Tin plated for corrosion-resistance
ATL30-38 Standards
CSA Certified|UL File No. E9809SKU #2222466Part Number #ATL30-38UNSPSC39121405UPC00783786610990

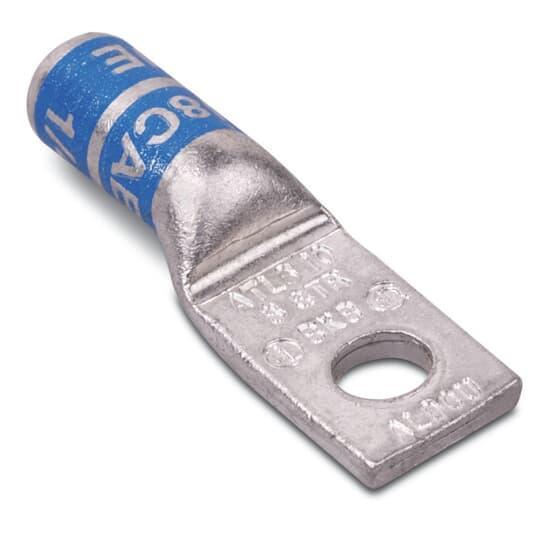

Image provided may only be a representation of final product and may include optional equipment
