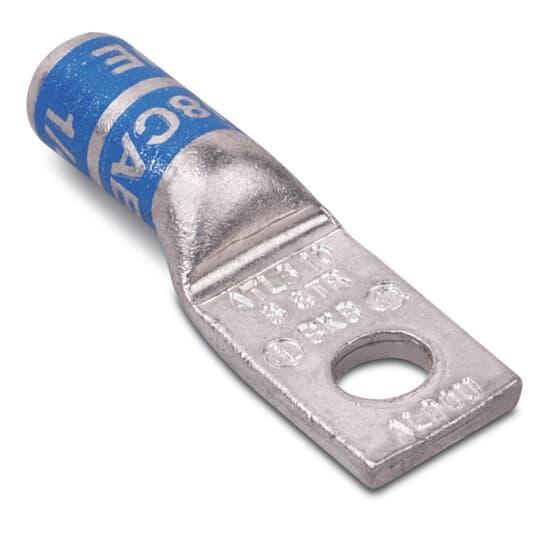

Thomas & Betts ATL350-12 Blackburn Compression Lug
Image Disclaimers Message
Thomas & Betts ATL350-12 Blackburn Compression Lug
Thomas & Betts ATL350-12 Blackburn Compression Lug
Part #:ATL350-12
SKU #: 2210575
Key Features
Part #:ATL350-12
SKU #: 2210575
Brand: Thomas & Betts
Barrel Size: 2-11/16, 2-11/16 in
Barrel Type: Standard
Conductor Size: 350 to 500, 350 to 500 kcmil
Conductor Type: Aluminum/Copper
Overall Length: 4-7/8, 4-7/8 in
- Specifically designed for use with aluminum conductors (concentric, compressed or compact)
- Also listed for use with copper conductors
- Made of high conductivity seamless aluminum tubing
- Chamfered barrels for ease of installation
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- Color coded for quick, easy die identification
- Prefilled with oxide-inhibitor
- Tin plated for corrosion-resistance
Thomas & Betts ATL350-12 Blackburn Compression Lug
Color-Keyed Compression Lug, 1-Hole, Series: ATL, Aluminum/Copper Conductor, 350 to 500 kcmil Conductor, 35 kV, 1/2 in Stud, Straight Tongue, 1-5/16 in L x 1-1/2 in W x 5/16 in THK Tongue, 4-7/8 in Overall Length, Standard Barrel, 2-11/16 in Barrel, Specifications: Tin Plated, Aluminum, Brown
Additional Description: TB -ATL350-12(N) 350 AL TP COMP LUG 1HL 1/2IN BRN NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Type Aluminum One-Hole Lug, Max 35kV, Wire Size 350 kcmil, 1/2 Inch Bolt Hole, Tin Plated, Die Color Code Brown
