Part Number # B250
SKU # 39081
Image Disclaimers Message
Brand: Thomas & Betts
B250

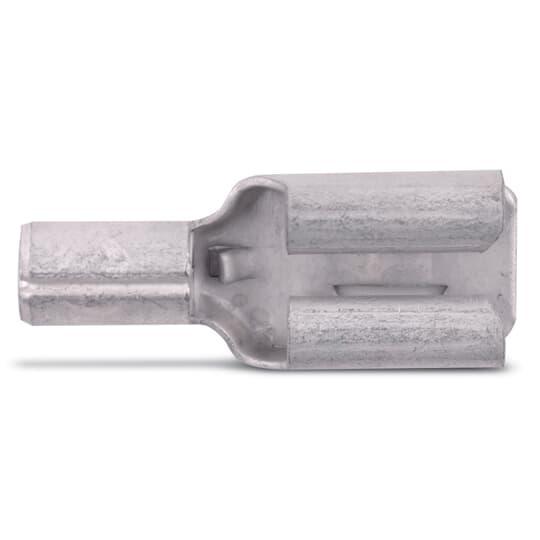

Thomas & Betts B250 Sta-Kon Female Disconnect
Part Number # B250
SKU # 39081
$222.80 / 1000Each
Thomas & Betts B250 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | B250 |
| SKU #: | 39081 |
| Barrel Type: | Brazed Seam |
| Conductor Size: | 16 to 14, 16 to 14 AWG |
| Dimensions: | 0.73 in L x 0.31 in W |
| Finish: | Electroplated Tin |
| Insulated: | Non-Insulated |
| Series: | 250 |
| Specifications: | 0.03 in THK Stock |
| Temperature Rating (Degrees F): | 150, 150 deg C |
| Terminal Type: | Crimp |
| Color: | Metallic |
| Country of origin: | US |
| Material: | Brass |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121447 |
| UPC: | 00786210809915 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$222.80 / 1000Each
Quantity:
- Sta-Kon Female Disconnect, Series: 250, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 600 V AC, 0.03 in THK Stock, 150 deg C, Brass, Metallic, Electroplated Tin, 0.73 in L x 0.31 in W, Insulated: Non-Insulated
B250 Item Features
- Unique construction of the female disconnect offers long term dependability
- Funnel entry insulators enable easier inserting of wire into barrel
- Brazed seam serrated barrel provides maximum tensile strength
- Suitable for use with WT110M, WT111M, WT112M, WT2000, ERG4002 tools
- Color-coded for easy installation
B250 Standards
CSA Certified|UL 94 V-0 Flammability Rating|UL File No. E66716SKU #39081Part Number #B250UNSPSC39121447UPC00786210809915
