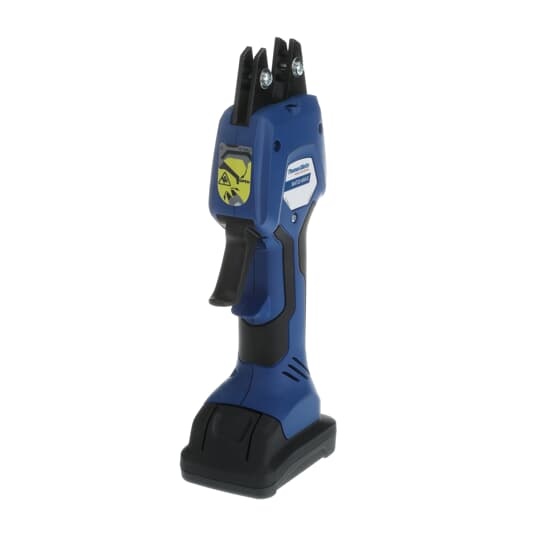

Thomas & Betts BAT22-6NV2 Sta-Kon Crimping Tool
Part Number # BAT22-6NV2
SKU # 2321455
$2514.89 / Each
Thomas & Betts BAT22-6NV2 Key Features
Brand: Thomas & Betts
Part Number # BAT22-6NV2
SKU #2321455
Dimensions: 3.6 in W
Overall Length: 9.93, 9.93 in
Type: Battery Powered
Voltage Rating: 10.8, 10.8 VDC
Color: Black
Country of origin: DE
Manufacturer Name: ABB
UNSPSC: 27112750
UPC: 00786210079530
$2514.89 / Each
Thomas & Betts BAT22-6NV2 Sta-Kon Crimping Tool
Brand: Thomas & Betts
Part Number: BAT22-6NV2
Sta-Kon Crimping Tool, Battery Powered, Bare Tool/Kit: Bare Tool, Crimping Capacity: 22 to 6 AWG, 10.8 VDC, Lithium-ion Battery, Black, 9.93 in Overall Length, 3.6 in W
Additional Description: TB -BAT22-6NV2 (N) HAND OPERATED BATTERY TOOL BATTERY TOOL FOR 22-6 AWG TERMIANLS INCLUDES 2 BATTERIES, CHARGER, AND CASE - DIES SOLD SEP NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Battery-Powered Crimping Tool, Intended to Crimp Some Types of Terminals, Splices, Wire Joints and Dragon Tooth, 22AWG Through 6AWG Wires Using Appropriate DIES (Sold Separately)
BAT22-6NV2 Application
For use in crimping terminals, splices, wire joints and dragon toothBAT22-6NV2 Item Features
- 14.4 VDC lithium ion battery offers lighter weight, longer run time, no memory effect, minimal discharge and rapid recharge
- Visual indication of complete crimp compression (green/orange/red)
- Covers a wide range of applications in both the electrical and utility markets
- Dieless tool with a 180 deg rotating head, uses one stationary and three movable indenting nibs, which close at 90 deg angles to each other so that the connector is squeezed equally at four strategic points
- For crimping 6 to 750 kcmil Cu/Al connectors
BAT22-6NV2 Standards
CE Certified|CSA Certified|UL ListedSKU #2321455Part Number #BAT22-6NV2UNSPSC27112750UPC00786210079530
