Part Number # BC-3
SKU # 2291355
Image provided may only be a representation of
final product and may include optional equipment
BC-3

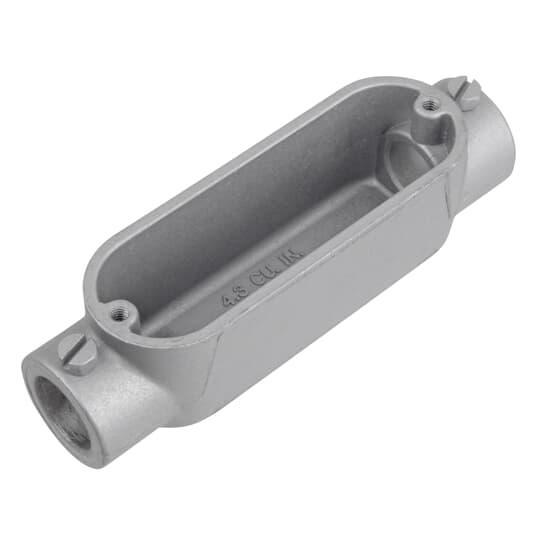

Thomas & Betts BC-3 Steel City Conduit Body
Part Number # BC-3
SKU # 2291355
$311.92 / 5Each
Typical price:$417.97 / Each
Thomas & Betts BC-3 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | BC-3 |
| SKU #: | 2291355 |
| Capacity: | 11.8, 11.8 cu-in |
| Dimensions: | 5-15/16 in L x 3-1/2 in W x 1-7/8 in H |
| Hub Size: | 1, 1 in |
| Series: | B Series |
| Type: | Type C, Type-C |
| Connection type: | NPT/Set Screw |
| Country of origin: | IN |
| Material: | Die Cast Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131708 |
| UPC: | 00042269330207 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$311.92 / 5Each
Typical price:$417.97 / Each
Quantity:
Thomas & Betts BC-3 Steel City Conduit Body
Brand: Thomas & Betts
Part Number: BC-3
Red Dot Conduit Body, Type-C, Series: B Series, 1 in Hub, 2 Hubs, 11.8 cu-in, NPT/Set Screw, Die Cast Aluminum, 5-15/16 in L x 3-1/2 in W x 1-7/8 in H
Additional Description: TB -BC-3 1 INCH EMT C CONDUIT BODY
Catalog Description: 1 inch Set Screw Die Cast Aluminum Thru-Feed Conduit Body. For Use with EMT Conduit.
BC-3 Application
For EMT conduitBC-3 Item Features
- Retained stainless steel cover screws
- Smooth throats for easy wire pulling
- Ultra-high pressure die cast copper-free aluminum
- Side access opening
- Thru feed design
BC-3 Standards
UL E28688, CSASKU #2291355Part Number #BC-3UNSPSC39131708UPC00042269330207
