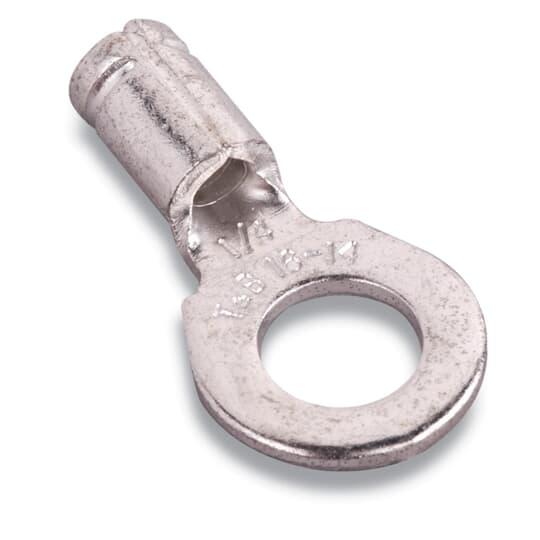

Thomas & Betts BC14-38 Sta-Kon Ring Terminal
Image Disclaimers Message
Thomas & Betts BC14-38 Sta-Kon Ring Terminal
Thomas & Betts BC14-38 Sta-Kon Ring Terminal
Part #:BC14-38
SKU #: 2197527
Key Features
Part #:BC14-38
SKU #: 2197527
Brand: Thomas & Betts
Barrel Type: Serrated
Conductor Size: 16 to 14, 16 to 14 AWG
Finish: TiN Coated
Series: B Series
Specifications: 0.38 in Clearance
- Non-insulated ring terminals are made of electrolytic copper for high conductivity/corrosion resistance
- Can be installed with crimping tools having a single indenter or double indenter (recommended for solid wire)
- Serrated barrel to increases grip-on wire
- 50 pieces/pack
Thomas & Betts BC14-38 Sta-Kon Ring Terminal
Sta-Kon Ring Terminal, Heavy Duty Non-Insulated, Series: B Series, 16 to 14 AWG Conductor, 3/8 in Stud, 1.09 in Length, Serrated Barrel, Ring Tongue, 0.63 in W x 0.05 in THK Tongue, 600 VAC, 0.38 in Clearance, 150 deg C, Copper, Tin Coated, Metallic
Additional Description: TB -BC14-38 NON-INS RING TERM, HD 16-14, 3/8, M METALL
Catalog Description: Non-Insulated Heavy Duty Ring Terminal, Length 1.09 Inches, Width .63 Inches, Bolt Hole 3/8 Inch, Wire Range #16-#14 AWG Heavy Duty, Copper, Tin Plated
