BC6-TB

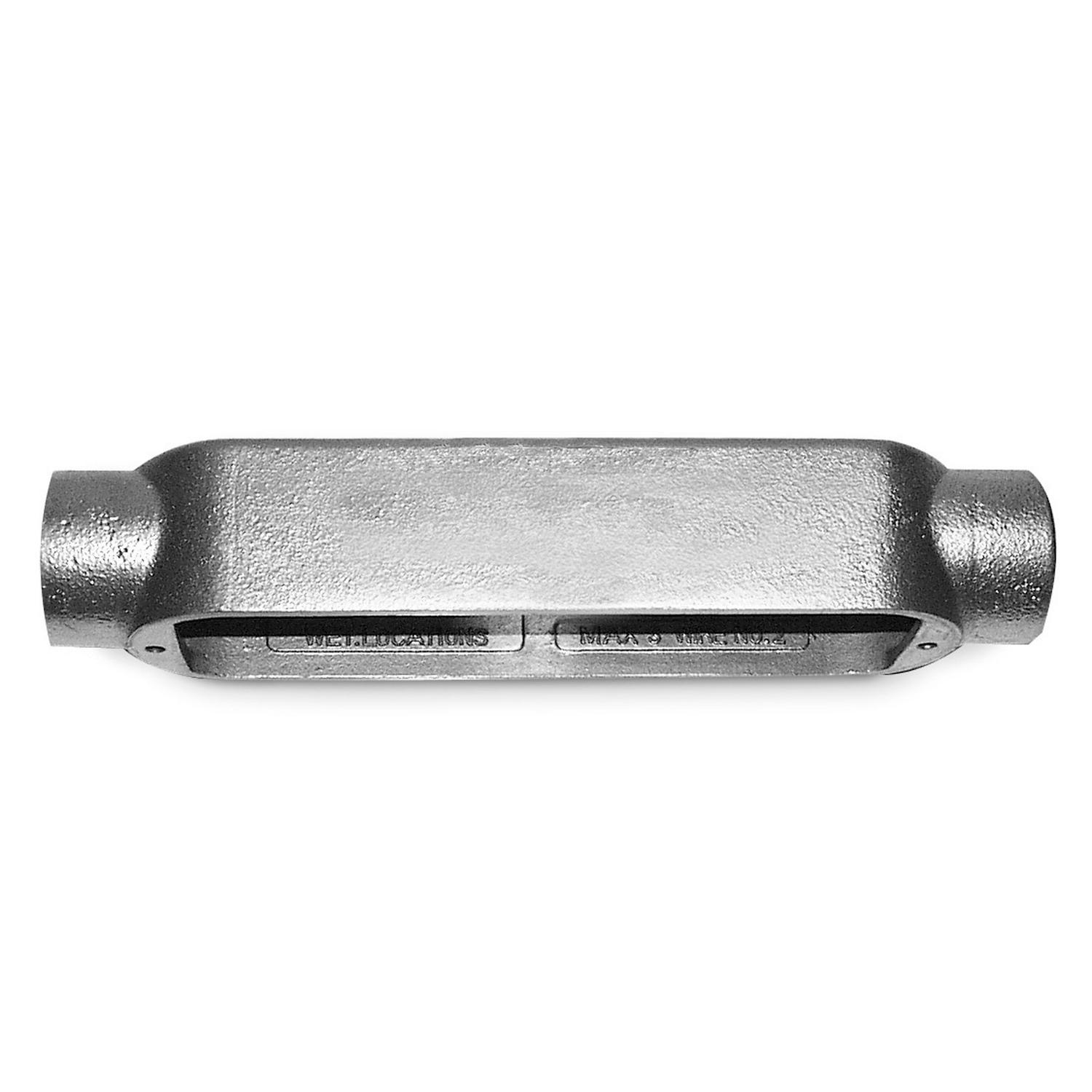

Thomas & Betts BC6-TB Conduit Body
Part Number # BC6-TB
SKU # 2226865
Thomas & Betts BC6-TB Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | BC6-TB |
| SKU #: | 2226865 |
| Capacity: | 78, 78 cu-in |
| Dimensions: | 13.75 in L x 3.31 in W x 3 in H |
| Finish: | Electro Galvanized |
| Form: | Mogul |
| Hub Size: | 2, 2 in |
| Series: | BC Series |
| Type: | Type C, Type-C |
| Color: | Gray |
| Connection type: | Thread, Threaded |
| Country of origin: | US |
| Material: | Gray Iron, Iron |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131708 |
| UPC: | 00786210088921 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts BC6-TB Conduit Body
Brand: Thomas & Betts
Part Number: BC6-TB
T&B Conduit Body, Type-C, Series: BC Series, 2 in Hub, 2 Hubs, 78 cu-in Capacity, Mogul, Thread, Iron, Electro Galvanized, Gray, 13.75 in L x 3.31 in W x 3 in H
Additional Description: TB -BC6-TB (N) 2 INCH MOGUL BODY IRON C STYLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 2 Inch Mogul Conduit Outlet Body, Cover and Gasket, Thru-Feed, Body Material Gray Iron, Finish Electro Galvanized, Cover Material Gray Iron with Stainless Steel Cover Screws, Gasket Material Neoprene, for Use with Rigid/IMC Conduit
BC6-TB Application
For rigid/IMC conduit and installed in conduit systems to act as pull outlets for conductors that are stiff, due to large size or type of insulationBC6-TB Includes
Cover and GasketBC6-TB Item Features
- Long openings, provision for easy bends, tapered tapped hubs with integral bushings
- Thru feed design
- Provide the longer openings needed when pulling large conductors
- Prevent sharp bends and kinks in large conductors which protects insulation during installation
- Provide access to wiring for maintenance and future system changes
- Stainless steel cover screws and neoprene gasket
BC6-TB Standards
UL File No. E2969SKU #2226865Part Number #BC6-TBUNSPSC39131708UPC00786210088921
