Part Number # BG075-14-4
SKU # 2443282
Image Disclaimers Message
BG075-14-4
Thomas & Betts BG075-14-4
Part Number # BG075-14-4
SKU # 2443282
$1835.43 / 50Each
Typical price:$2459.45 / Each
Thomas & Betts BG075-14-4 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | BG075-14-4 |
| SKU #: | 2443282 |
| AC Cable Size: | 14 to 4 AWG |
| Dimensions: | 0.772 in ID x 1.533 in OD |
| Finish: | Zinc Plated |
| Insulated/Non-Insulated: | Insulated |
| Temperature Rating (Degrees F): | 302 deg F |
| Trade Size: | 3/4 in |
| Country of origin: | US |
| Material: | Malleable Iron |
| Mounting type: | Threaded |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121312 |
| UPC: | 00786210161556 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1835.43 / 50Each
Typical price:$2459.45 / Each
Quantity:

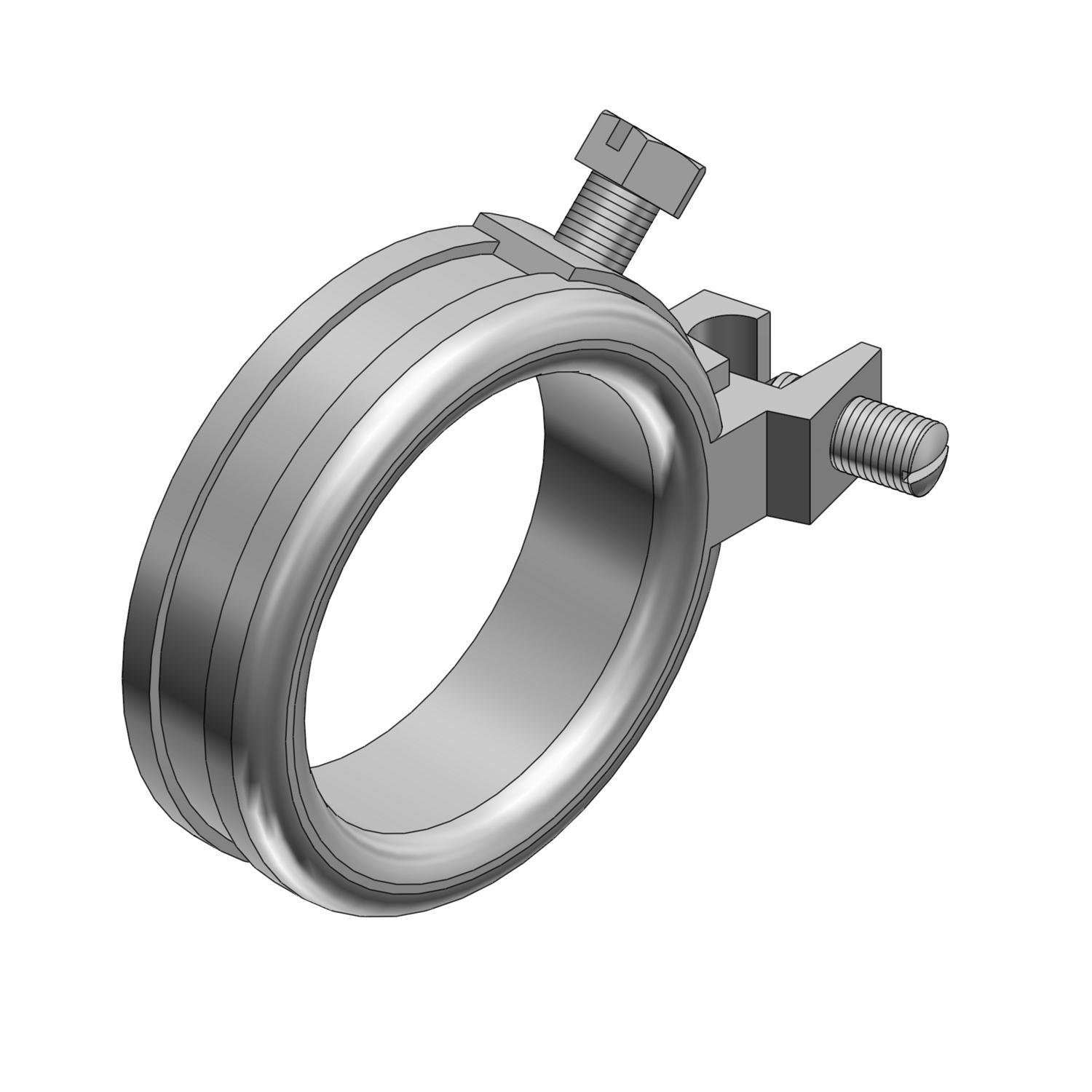

- T&B Blackjack Grounding Bushing, 14 to 4 AWG AC Cable Size, 3/4 in, Insulated Insulated/Non-Insulated, 302 deg F, Threaded Mount, Malleable Iron, Zinc Plated, 0.772 in ID x 1.533 in OD
BG075-14-4 Application
For use with rigid/IMC conduitBG075-14-4 Item Features
- Mounting screw with nylon locking patch has a cone point to lock bushing securely in place
- Integral grounding lug enhances ground continuity
- Added ground wire range taking reduces inventory
- Accepts copper or aluminum ground wires
- Insulating nylon surface is 150 deg C rated and covers top of bushing, including lug corners
- Angle of lug screw improves accessibility when securing grounding wire
- Insulator surface features a rounded design to reduce drag and prevent abrasion during wire pulling
- Cast "threads" opposite the mounting screw tighten the fit during installation
BG075-14-4 Standards
CSA C22.2 File No. 18.3/41|CSA Certified|UL 514B/467|UL File No. E3060SKU #2443282Part Number #BG075-14-4UNSPSC39121312UPC00786210161556
