BKNH-M506
Thomas & Betts BKNH-M506
Part Number # BKNH-M506
SKU # 2449837
Thomas & Betts BKNH-M506 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | BKNH-M506 |
| SKU #: | 2449837 |
| Dimensions: | 75 mm L |
| Series: | KNH |
| Suitable For Use With: | PMAFLEX High Performance Conduits |
| Diameter: | 65 mm |
| UNSPSC: | 39121420 |
| UPC: | 00786209947161 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Thomas & Betts BKNH-M506
Brand: Thomas & Betts
Part Number: BKNH-M506

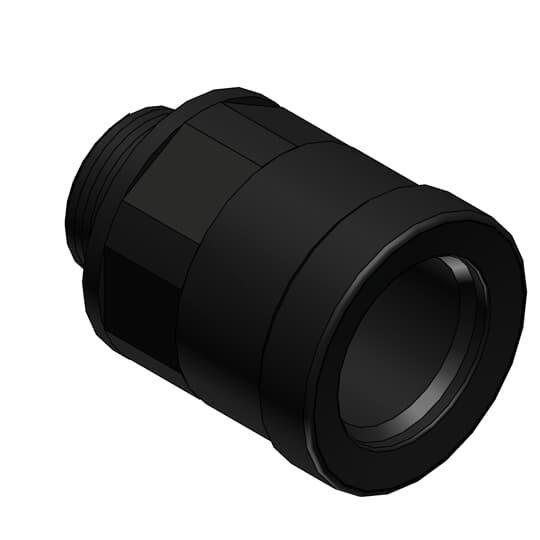

PMA PMAFIX Pro Conduit Connector, 2-Piece Straight, Series: KNH, NW36 Trade, Cable Openings: M50x1.5, 65 mm Diameter, For Use With: PMAFLEX High Performance Conduits, Polyamide 6, Black, 75 mm L Dimensions
Additional Description: TB -BKNH-M506(N) FTNG STR PA6 M50 NW36 IP69 BLK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: KNH Connector Straight, Metric Metal Thread IP69 - Thread M50x1.5, Fits to Conduit NW36, Color Black
BKNH-M506 Application
For high technical requirements and in most demanding climatic conditionsBKNH-M506 Item Features
- Specially formulated, halogen free polyamide 6
- Locking and sealing element made from specially formulated, halogen free polyamide 6 and cross linked polyester elastomer
- Very high impact resistance, even at very low temperatures
- Vibration proof and completely compatible with PMAFLEX conduits
- Easy, push-in assembly for maximum installation reliability
- Screwdriver required for dismantling, impeding unauthorized or accidental opening
- Space saving dismantling
- Excellent conduit pullout strength
- Fits both conduit profiles - fine (T) and coarse (G)
- https://youtu.be/G0Db2YGmBoQ
BKNH-M506 Standards
cULus Listed|CE CertifiedSKU #2449837Part Number #BKNH-M506UNSPSC39121420UPC00786209947161
Image provided may only be a representation of final product and may include optional equipment
