Brand: Thomas & Betts
BLB5-TB

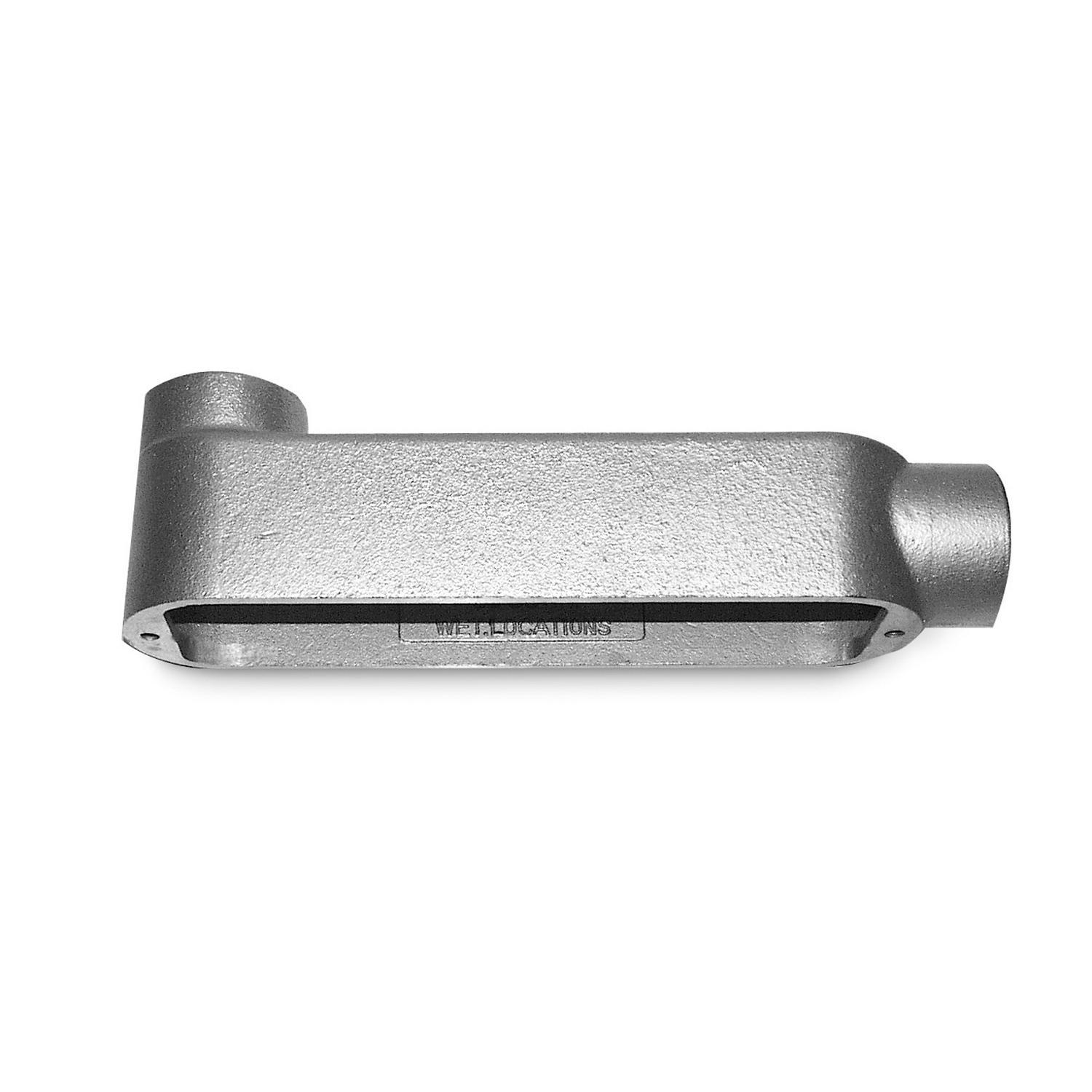

Thomas & Betts BLB5-TB Conduit Body
Part Number # BLB5-TB
SKU # 2226774
$349.79 / Each
Typical price:$468.72 / Each
Thomas & Betts BLB5-TB Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | BLB5-TB |
| SKU #: | 2226774 |
| Capacity: | 60, 60 cu-in |
| Dimensions: | 12.58 in L x 2.56 in W x 3 in H |
| Finish: | Electro Galvanized |
| Form: | Mogul |
| Hub Size: | 1-1/2, 1-1/2 in |
| Series: | BLB |
| Type: | Type LB |
| Connection type: | Thread, Threaded |
| Country of origin: | US |
| Material: | Gray Iron |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131708 |
| UPC: | 00786210088808 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$349.79 / Each
Typical price:$468.72 / Each
Quantity:
Thomas & Betts BLB5-TB Conduit Body
Brand: Thomas & Betts
Part Number: BLB5-TB
T&B Conduit Body, Type LB, Series: BLB, 1-1/2 in Hub, 2 Hubs, 60 cu-in Capacity, Mogul, Thread, Gray Iron, Electro Galvanized, 12.58 in L x 2.56 in W x 3 in H
Additional Description: TB -BLB5-TB (N) 1-1/2 IN MOGUL BODY,IRON, LB STYLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 1-1/2 Inch Mogul Conduit Outlet Body, Cover and Gasket, Back Opening, Body Material Gray Iron, Finish Electro Galvanized, Cover Material Gray Iron with Stainless Steel Cover Screws, Gasket Material Neoprene
BLB5-TB Application
For rigid/IMC conduit and installed in conduit systems to act as pull outlets for conductors that are stiff, due to large size or type of insulationBLB5-TB Item Features
- Long openings, provision for easy bends, tapered tapped hubs with integral bushings
- Thru feed design
- Provide the longer openings needed when pulling large conductors
- Prevent sharp bends and kinks in large conductors which protects insulation during installation
- Provide access to wiring for maintenance and future system changes
- Stainless steel cover screws and neoprene gasket
- Back opening
BLB5-TB Standards
UL File No. E2969SKU #2226774Part Number #BLB5-TBUNSPSC39131708UPC00786210088808
