Part Number # BLB7-TB
SKU # 2299758
Image provided may only be a representation of
final product and may include optional equipment
BLB7-TB

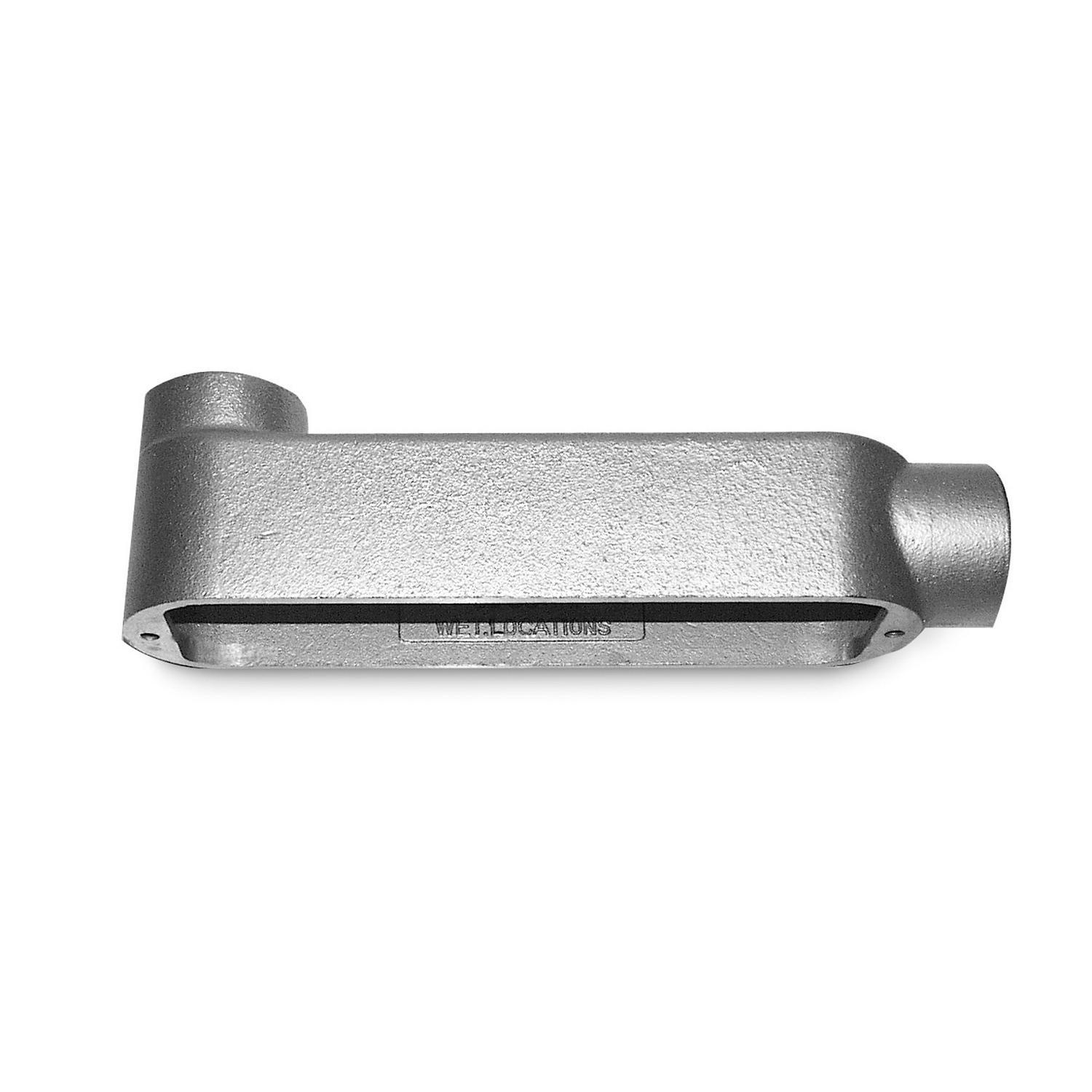

Thomas & Betts BLB7-TB Conduit Body
Part Number # BLB7-TB
SKU # 2299758
Thomas & Betts BLB7-TB Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | BLB7-TB |
| SKU #: | 2299758 |
| Capacity: | 170, 170 cu-in |
| Dimensions: | 16.94 in L x 4.25 in W x 5.1 in H |
| Finish: | Electro Galvanized, Electro-Galvanized |
| Form: | Mogul |
| Hub Size: | 2-1/2, 2-1/2 in |
| Type: | Type LB |
| Country of origin: | US |
| Material: | Gray Iron |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131708 |
| UPC: | 00786210088822 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts BLB7-TB Conduit Body
Brand: Thomas & Betts
Part Number: BLB7-TB
T&B Conduit Body, Type LB, 2-1/2 in Hub, 2 Hubs, 170 cu-in, Mogul, Gray Iron, Electro Galvanized, 16.94 in L x 4.25 in W x 5.1 in H
Additional Description: TB -BLB7-TB (N) 2-1/2inch MOGUL BODY,IRON, LB STYLE LB STYLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 2-1/2 Inch Mogul Conduit Outlet Body, Cover and Gasket, Back Opening, Body Material Gray Iron, Finish Electro Galvanized, Cover Material Gray Iron with Stainless Steel Cover Screws, Gasket Material Neoprene
BLB7-TB Application
For use to installed in conduit systems to act as pull outlets for conductors that are stiff, due to large size or type of insulationBLB7-TB Includes
Stainless Steel Cover Screw and GasketBLB7-TB Item Features
- Long openings
- Provision for easy bends
- Tapered tapped hubs with integral bushings
BLB7-TB Standards
UL File No. E2969SKU #2299758Part Number #BLB7-TBUNSPSC39131708UPC00786210088822
