Part Number # C100M
SKU # 2270045
Image Disclaimers Message
Brand: Thomas & Betts
C100M

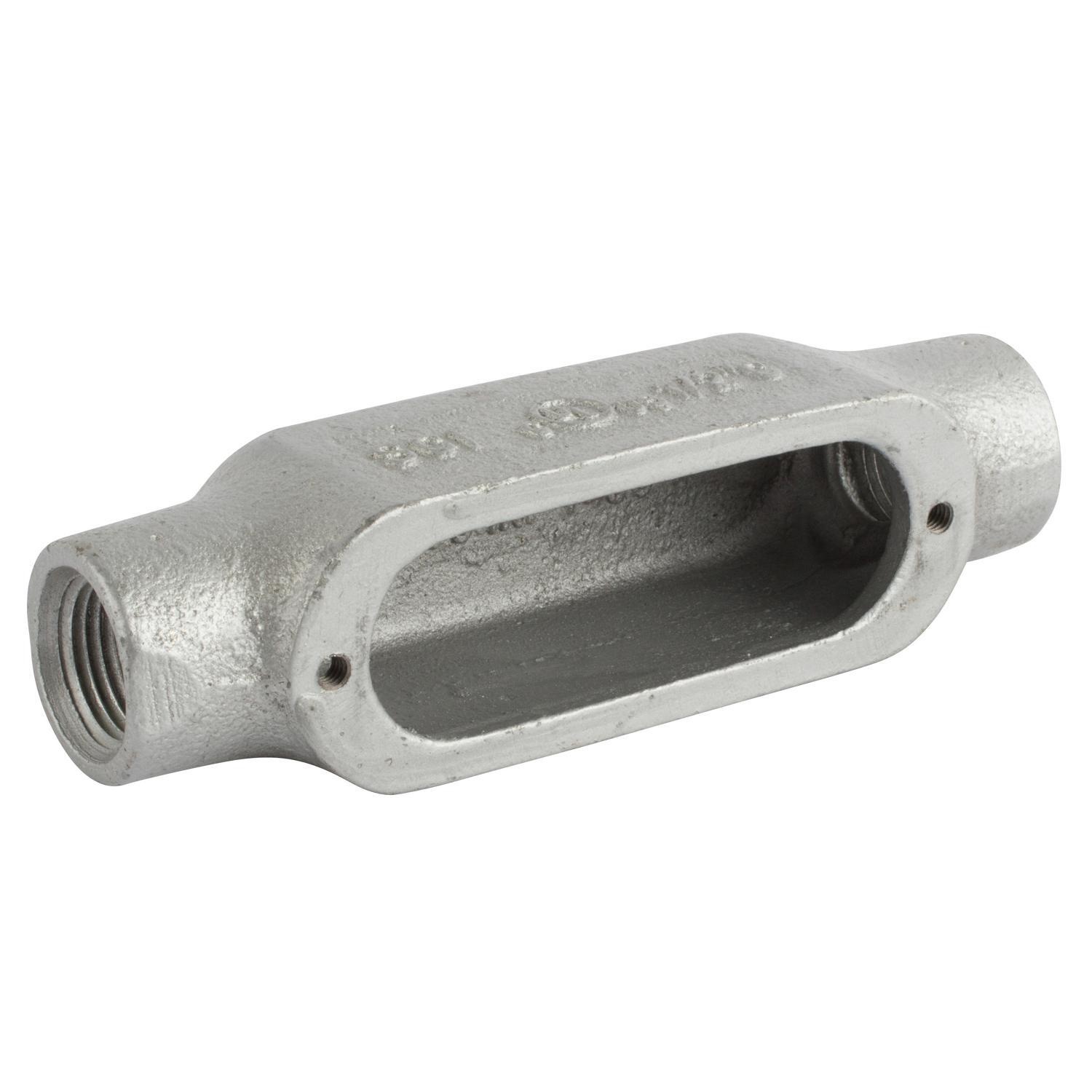

Thomas & Betts C100M Conduit Body
Part Number # C100M
SKU # 2270045
$36.90 / Each
Typical price:$49.45 / Each
Thomas & Betts C100M Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | C100M |
| SKU #: | 2270045 |
| Capacity: | 12-1/2, 12.5 cu-in |
| Dimensions: | 1.8 in L x 7.05 in W x 1.9 in H |
| Finish: | Aluminum Acrylic Coated/Zinc Plated, Zinc Plated/Aluminum Acrylic Coated |
| Hub Size: | 1, 1 in |
| Series: | 35 Series |
| Type: | Type C Feed-Through |
| Connection type: | NPT |
| Country of origin: | CN |
| Material: | Malleable Iron |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131708 |
| UPC: | 00786210961941 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$36.90 / Each
Typical price:$49.45 / Each
Quantity:
Thomas & Betts C100M Conduit Body
Brand: Thomas & Betts
Part Number: C100M
T&B Conduit Body, Type C Feed-Through, Series: 35 Series, 1 in Hub, 2 Hubs, 12.5 cu-in, NPT, Malleable Iron, Aluminum Acrylic Coated/Zinc Plated, 1.8 in L x 7.05 in W x 1.9 in H
Additional Description: TB -C100M 1IN S35 C COND BODY IRON
Catalog Description: Series 35 Thru-Feed, 1 Inch Conduit Body, Body Material Malleable Iron, Finish Zinc Plating with an Aluminum, Acrylic Coating for Use with Rigid/IMC Conduit
C100M Application
For use to installed in conduit systems to connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductorsC100M Includes
Stainless Steel Captive ScrewC100M Item Features
- Zinc plated iron construction with aluminum acrylic coating provides durability, impact resistance and corrosion resistance
- Features tapered, threaded NPT hubs
- Suitable for use in concrete
- Serve as pulling outlets during conductor installation
- Provide easy access for splices in branch conductors
- Make 90 deg bends in conduit runs
- Act as mounting outlets for wiring devices and lighting fixtures
- Provide access to conductors for maintenance and future system changes
C100M Standards
CSA Certified|UL File No. E2969SKU #2270045Part Number #C100MUNSPSC39131708UPC00786210961941
