Part Number # C150M
SKU # 2270047
Image Disclaimers Message
C150M

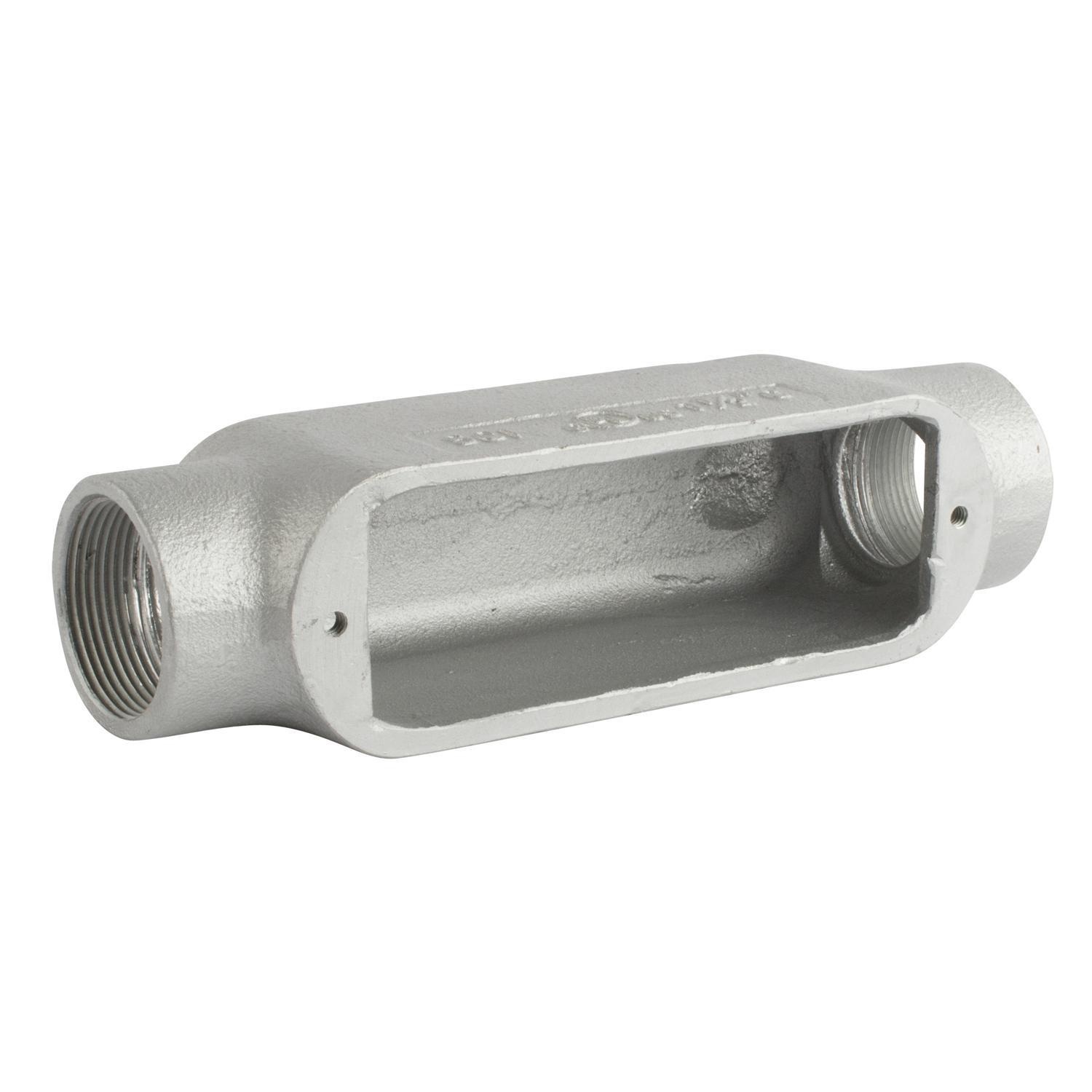

Thomas & Betts C150M Conduit Body
Part Number # C150M
SKU # 2270047
$56.66 / Each
Typical price:$75.93 / Each
Thomas & Betts C150M Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | C150M |
| SKU #: | 2270047 |
| Capacity: | 35.3, 35.3 cu-in |
| Dimensions: | 2.6 in L x 9 in W x 2.83 in H |
| Finish: | Aluminum Acrylic Coated/Zinc Plated, Zinc Plated with Aluminum Acrylic Coated |
| Hub Size: | 1-1/2, 1-1/2 in |
| Series: | 35 Series |
| Type: | Type C Feed-Through |
| Connection type: | NPT |
| Country of origin: | CN |
| Material: | Malleable Iron |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131708 |
| UPC: | 00786210962016 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$56.66 / Each
Typical price:$75.93 / Each
Quantity:
Thomas & Betts C150M Conduit Body
Brand: Thomas & Betts
Part Number: C150M
T&B Conduit Body, Type C Feed-Through, Series: 35 Series, 1-1/2 in Hub, 2 Hubs, 35.3 cu-in, NPT, Malleable Iron, Aluminum Acrylic Coated/Zinc Plated, 2.6 in L x 9 in W x 2.83 in H
Additional Description: TB -C150M 1-1/2IN S35 C COND BODY IRON
Catalog Description: Series 35 Thru-Feed, 1-1/2 Inch Conduit Body, Body Material Malleable Iron, Finish Zinc Plating with an Aluminum, Acrylic Coating for Use with Rigid/IMC Conduit
C150M Application
For use to installed in conduit systems to connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductorsC150M Includes
Stainless Steel Captive ScrewC150M Item Features
- Zinc plated iron construction with aluminum acrylic coating provides durability, impact-resistant and corrosion-resistance
- Features tapered, threaded NPT hubs
- Suitable for use in concrete
- Make 90 deg bends in conduit runs
- Provide access to conductors for maintenance and future system changes
C150M Standards
CSA Certified|UL File No. E2969SKU #2270047Part Number #C150MUNSPSC39131708UPC00786210962016
