C27

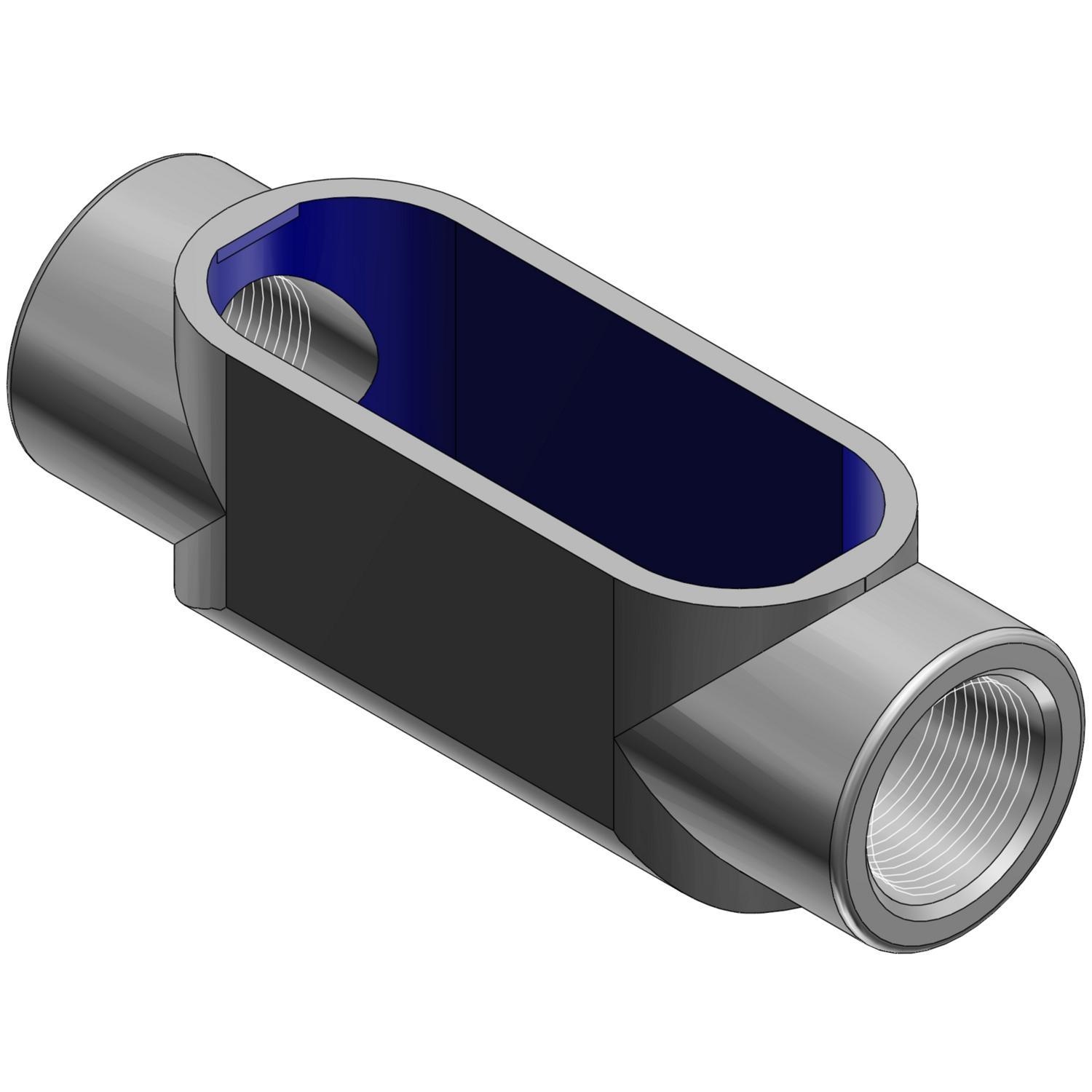

Thomas & Betts C27 BlueKote Conduit Body
Part Number # C27
SKU # 2248406
$133.15 / 5Each
Typical price:$178.40 / Each
Thomas & Betts C27 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | C27 |
| SKU #: | 2248406 |
| Capacity: | 6.6, 6.6 cu-in |
| Dimensions: | 6.05 in L x 1.65 in W x 1.6 in H |
| Finish: | Epoxy Powder Coated/Zinc Plated, Zinc Plated with Epoxy Powder Coated |
| Form: | Form 7 |
| Hub Size: | 3/4, 3/4 in |
| Type: | Type C, Type-C |
| Color: | Gray |
| Connection type: | Tapered NPT |
| Country of origin: | CN |
| Material: | Malleable Iron |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131708 |
| UPC: | 00786210924588 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$133.15 / 5Each
Typical price:$178.40 / Each
Quantity:
Thomas & Betts C27 BlueKote Conduit Body
Brand: Thomas & Betts
Part Number: C27
T&B BlueKote Conduit Body, Type-C, 3/4 in Hub, 2 Hubs, 6.6 cu-in Capacity, Form 7, Tapered NPT, Malleable Iron, Epoxy Powder Coated/Zinc Plated, Gray, 6.05 in L x 1.65 in W x 1.6 in H
Additional Description: TB -C27 3/4INBLKOTE C COND BODY FRM7
Catalog Description: BlueKote Thru-Feed Form 7, 3/4 Inch Conduit Body, Body Material Gray Iron with Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit
C27 Application
For rigid/IMC conduit, connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductorsC27 Item Features
- Bluekote Teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
- Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
- Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
- Bodies are designed with a flat back, allowing more cubic inch capacity
- Thru feed design
C27 Standards
CSA Certified|UL File No. E2969SKU #2248406Part Number #C27UNSPSC39131708UPC00786210924588
