Part Number # C483
SKU # 2228627
Image provided may only be a representation of
final product and may include optional equipment
C483

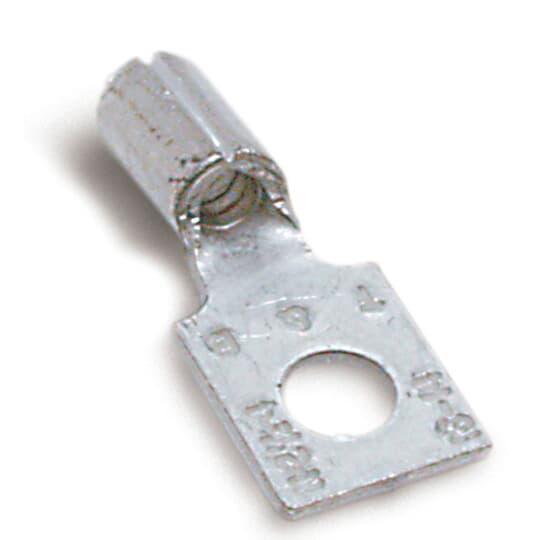

Thomas & Betts C483 Sta-Kon Ring Terminal
Part Number # C483
SKU # 2228627
Thomas & Betts C483 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | C483 |
| SKU #: | 2228627 |
| Barrel Type: | Brazed Seam |
| Conductor Size: | 12 to 10, 12 to 10 AWG |
| Finish: | TiN Coated |
| Series: | C Series |
| Specifications: | Non-Insulated |
| Temperature Rating (Degrees F): | 150, 150 deg C |
| Tongue Size: | 0.277 in W |
| Tongue Type: | Rectangle, Rectangular |
| Country of origin: | US |
| Length: | 0.76, 0.76 in |
| Material: | Electrolytic Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210811277 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts C483 Sta-Kon Ring Terminal
Brand: Thomas & Betts
Part Number: C483
Sta-Kon Ring Terminal, Series: C Series, 12 to 10 AWG Conductor, #5 Stud, 0.76 in Length, Brazed Seam Barrel, Rectangle Tongue, 0.277 in W Tongue, 600 V, Specifications: Non-Insulated, 150 deg C, Electrolytic Copper, TiN Coated
Additional Description: TB -C483 (N) NON-INS RECT RING TERM, 12-10, No5, METAL NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Non-Insulated Rectangular Ring Terminal, Length .76 Inches, Width .277 Inches, Bolt Hole #5, Wire Range #12-#10 AWG, Copper, Tin Plated
C483 Item Features
- Funneled barrel entry, deep internal serrations, brazed or overlapping seams
C483 Standards
UL E9809 / UL E9809SKU #2228627Part Number #C483UNSPSC39121432UPC00786210811277
