Part Number # C58TB
SKU # 2290576
Image Disclaimers Message
C58TB

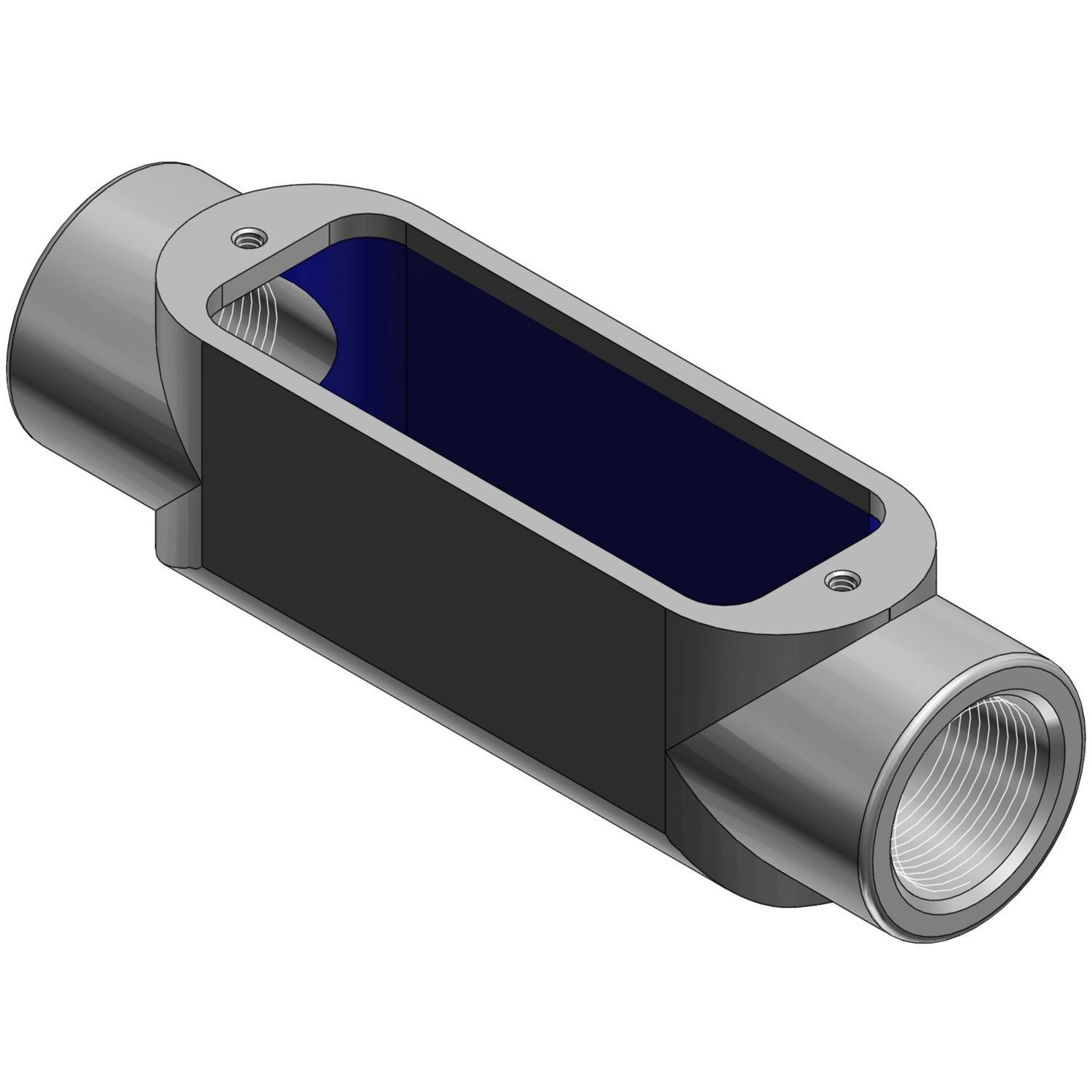

Thomas & Betts C58TB BlueKote Conduit Body
Part Number # C58TB
SKU # 2290576
Thomas & Betts C58TB Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | C58TB |
| SKU #: | 2290576 |
| Capacity: | 45 cu-in |
| Dimensions: | 10.38 in L x 2.75 in W x 2.78 in H |
| Finish: | Epoxy Powder Coated/Zinc Plated |
| Form: | Form 8 |
| Hub Size: | 1-1/2 in |
| Type: | Type-C |
| Color: | Gray |
| Connection type: | Tapered NPT |
| Country of origin: | CN |
| Material: | Malleable Iron |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131708 |
| UPC: | 00786210165394 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts C58TB BlueKote Conduit Body
Brand: Thomas & Betts
Part Number: C58TB
T&B BlueKote Conduit Body, Type-C, 1-1/2 in Hub, 2 Hubs, 45 cu-in Capacity, Form 8, Tapered NPT, Malleable Iron, Epoxy Powder Coated/Zinc Plated, Gray, 10.38 in L x 2.75 in W x 2.78 in H
Additional Description: TB -C58TB (N) 1-1/2 IN CONDUIT BODY IRON C F-8 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: BlueKote Thru-Feed Form 8, 1-1/2 Inch Conduit Body, Body Material Gray Iron with Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit
C58TB Application
For rigid/IMC conduit, connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductorsC58TB Item Features
- Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
- Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
- Bodies are designed with a flat back, allowing more cubic inch capacity
- Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
- Bluekote Teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
C58TB Standards
CSA Certified|UL File No. E2969SKU #2290576Part Number #C58TBUNSPSC39131708UPC00786210165394
