CH824MV

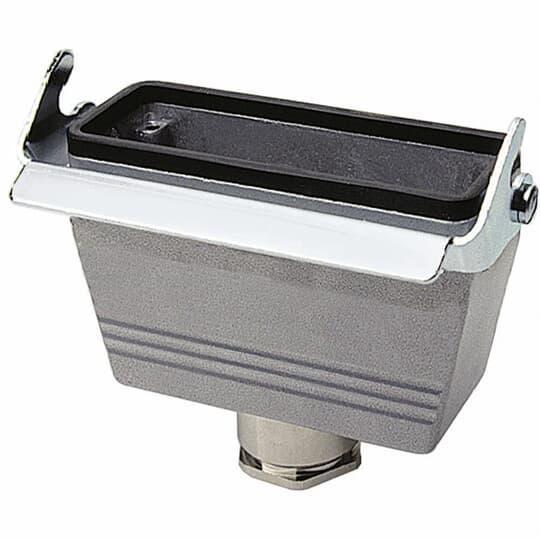

Thomas & Betts CH824MV Pos-E-Kon Locking In-Line Coupler Hood
Part Number # CH824MV
SKU # 2309821
$616.20 / 5Each
Typical price:$825.70 / Each
Thomas & Betts CH824MV Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | CH824MV |
| SKU #: | 2309821 |
| Entry Type: | 1 x 3/4 in NPT |
| Finish: | Epoxy Powder Coated |
| Series: | B Series |
| Specifications: | 16 A, 600 V AC, 16 A, 600 VAC |
| Suitable For Use With: | Standard Hood |
| Temperature Rating (Degrees F): | -40 to 257, -40 to 257 deg F |
| Type: | Single Lever |
| Country of origin: | DE |
| Material: | Die Cast Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121424 |
| UPC: | 00786209987969 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$616.20 / 5Each
Typical price:$825.70 / Each
Quantity:
- Pos-E-Kon Locking In-Line Coupler Hood, Single Lever, Series: B Series, Top Entry Position, 1 x 3/4 in NPT Entry, For Use With: Standard Hood, -40 to 257 deg F, Specifications: 16 A, 600 V AC, Die Cast Aluminum, Epoxy Powder Coated
CH824MV Application
For in-line, portable or special service connectionsCH824MV Item Features
- 24 contacts with ground
- Features die cast aluminum alloy construction for corrosion-resistance
- IP65 locked positions internal protection per DIN VDE 0470
- B24 single lock system 1 x PG21-3/4 connection
CH824MV Standards
CSA Certified|UL File No. E215386|IEC 529|VDE 0470SKU #2309821Part Number #CH824MVUNSPSC39121424UPC00786209987969
