Part Number # CH916HMV
SKU # 2403567
Image Disclaimers Message
Brand: Thomas & Betts
CH916HMV

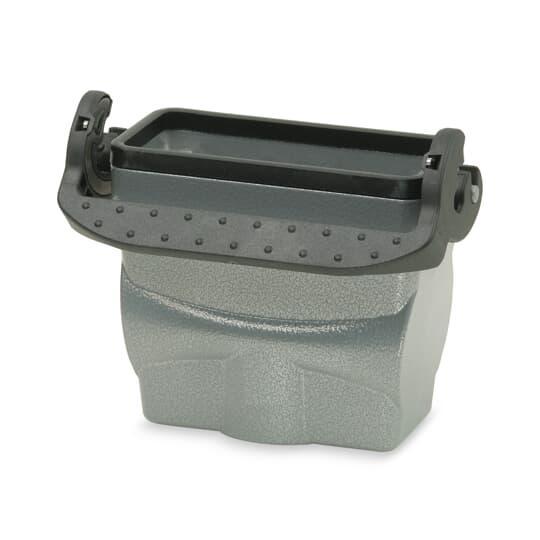

Thomas & Betts CH916HMV Pos-E-Kon Locking In-Line Coupler Hood
Part Number # CH916HMV
SKU # 2403567
$2107.20 / 10Each
Typical price:$2823.60 / Each
Thomas & Betts CH916HMV Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | CH916HMV |
| SKU #: | 2403567 |
| Dimensions: | 93.98 mm L x 43.002 mm W x 81.534 mm H |
| Entry Type: | 1 x 1 in NPT |
| Finish: | Epoxy Powder Coated |
| Series: | B Series |
| Specifications: | 16 A, 600 V AC, 16 A, 600 VAC |
| Suitable For Use With: | B Series Connector |
| Temperature Rating (Degrees F): | -40 to 257 deg F |
| Type: | Single Lever |
| Country of origin: | DE |
| Material: | Die Cast Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121424 |
| UPC: | 00786209987976 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2107.20 / 10Each
Typical price:$2823.60 / Each
Quantity:
- Pos-E-Kon Locking In-Line Coupler Hood, Single Lever, Series: B Series, Top Entry Position, 1 x 1 in NPT Entry, For Use With: B Series Connector, -40 to 257 deg F, Specifications: 16 A, 600 V AC, Die Cast Aluminum, Epoxy Powder Coated, 93.98 mm L x 43.002 mm W x 81.534 mm H Dimensions
CH916HMV Application
For in-line, portable or special service connectionsCH916HMV Item Features
- 16 contacts
- Sideways position cable feed
CH916HMV Standards
UL File No. E215386|UL 94 V-0 Flammability RatingSKU #2403567Part Number #CH916HMVUNSPSC39121424UPC00786209987976
