CJ12106

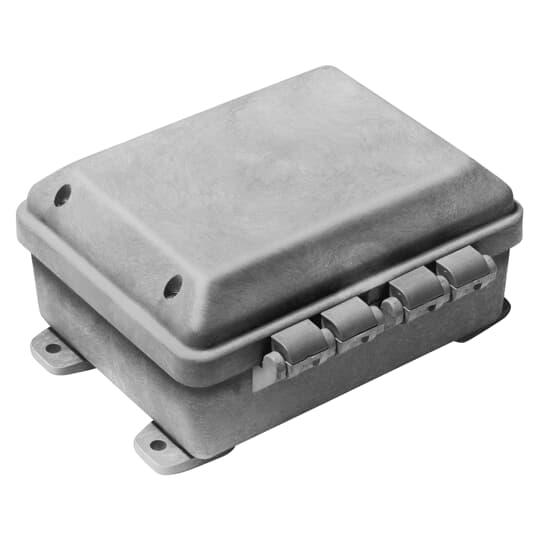

Thomas & Betts CJ12106 Carlon Circuit Safe JIC Enclosure
Part Number # CJ12106
SKU # 2265424
$568.67 / Each
Typical price:$762.02 / Each
Thomas & Betts CJ12106 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | CJ12106 |
| SKU #: | 2265424 |
| NEMA Rating: | NEMA 1/3/3S/3X/3SX/4/4X/12/13 |
| Panel Size: | 10.75 in H x 8.88 in W, 8.88 in W x 10.75 in H |
| Temperature Rating (Degrees F): | -40 to 185, -40 to 185 deg F |
| Type: | Factory Assembled |
| Color: | Gray |
| Country of origin: | US |
| Depth: | 12, 6 in |
| Height: | 12 in |
| Length: | 10 |
| Material: | Polycarbonate |
| Mounting type: | Rail |
| Width: | 10 in, 6 |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121324 |
| UPC: | 00034481102656 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$568.67 / Each
Typical price:$762.02 / Each
Quantity:
Thomas & Betts CJ12106 Carlon Circuit Safe JIC Enclosure
Brand: Thomas & Betts
Part Number: CJ12106
Carlon Circuit Safe JIC Enclosure, Factory Assembled, 10 in Width, 6 in Depth, 12 in Height, NEMA 1/3/3S/3X/3SX/4/4X/12/13, Hinged Cover, 8.88 in W x 10.75 in H Panel, Lock: Padlock Latch, Rail Mount, -40 to 185 deg F, Polycarbonate, Gray
Additional Description: TB -CJ12106 (N) 12X10X6 N12/4X JIC HNG CVR ENCL NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Circuit Safe Polycarbonate JIC Enclosure Assembly with hinged opaque cover, 12 Inches x 10 Inches x 6 Inches
CJ12106 Application
Instrument Case, Junction and Terminal Boxes, Control and Switching Enclosures, Splice and Pull Boxes, Starter, Pushbutton and Transformer Housings, Meter and Transformer CabinetsCJ12106 Includes
Mounting Feet, Hinge Caps and ScrewsCJ12106 Item Features
- Hinge caps make covers captive
- Non-metallic molded-in hinges on hinged models
- No rough corners, sharp edges or burrs
- Non-conductive eliminates danger of electrical shock
- Lid design provides greater usable internal volume
- Ample interior space for ease of wiring
- Fully gasketed
- Ultraviolet stabilized for outdoor use
- White painted 14 ga steel or 1/4 in PVC back panel
- Brass screw inserts
- 380 V/mil dielectric strength, 3 at 60 Hz, 2.96 at 106 Hz dielectric constant
CJ12106 Standards
JIC Compliant|CSA CertifiedSKU #2265424Part Number #CJ12106UNSPSC39121324UPC00034481102656
