Part Number # CPC050
SKU # 2218555
Image Disclaimers Message
CPC050

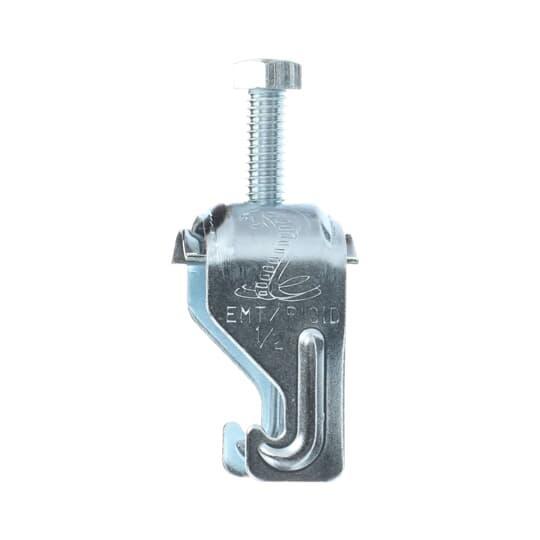

Thomas & Betts CPC050 Superstrut Cobra Conduit/Cable Clamp
Part Number # CPC050
SKU # 2218555
Thomas & Betts CPC050 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | CPC050 |
| SKU #: | 2218555 |
| Conduit Size: | 1/2, 1/2 in |
| Dimensions: | 1 in W |
| Finish: | GoldGalv, GoldGalv® |
| Load Capacity: | 200, 200 lb |
| Outside Diameter: | 0.65 to 0.89, 0.65 to 0.89 in |
| Series: | 700 |
| Specifications: | 35 ft-lb Torque |
| Suitable For Use With: | EMT, Rigid Conduit and Cable |
| Thickness: | 0.112, 0.112 in |
| Type: | 1-Piece 1-Hole |
| Country of origin: | CA |
| Material: | Steel |
| Mounting type: | Parallel Hook |
| Manufacturer Name: | ABB |
| UNSPSC: | 31162906 |
| UPC: | 00616013106983 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts CPC050 Superstrut Cobra Conduit/Cable Clamp
Brand: Thomas & Betts
Part Number: CPC050
Superstrut Cobra Conduit/Cable Clamp, 1-Piece 1-Hole, Series: 700, 1/2 in Conduit, 200 lb Load, 0.65 to 0.89 in OD, 0.112 in Thickness, Parallel Hook Mounting, For Use With: EMT, Rigid Conduit and Cable, Specifications: 35 ft-lb Torque, Steel, GoldGalv , 1 in W Dimensions
Additional Description: TB -CPC050 (D) (N) 1-PIECE CBL/PIPE CLP 1/2IN STL 1/2IN COBRA (.650-.890) STD.PK.100 STD.PK.100 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Clamp, One-Piece Cable and Pipe, EMT and Rigid Conduit Trade Size 1/2 Inch, Cable Outer Diameter Range .650-.890 Inches, Steel
CPC050 Application
For attaching a full range of rigid/EMT conduit and cable to strut channelsCPC050 Item Features
- 1-piece, heavy duty construction ready-to install right out of the box, no need to break-apart and reassemble, no screws or bolts to drop
- Heavy duty 5/16 in hex bolt with multi-driver head (Robertson square, Philips cross-recess and slot) provides a full range of installation options
- Reconfigure wiring without complete disassembly
- Remove cables easily without disturbing neighboring clamps
- Parallel hook design keeps conduits and cable square with strut
- Works with all depth of strut 13/16 to 3-1/4 in
- 2 hooks on the same side make the clamp easy-to install and keep conduits and cable square with strut
- Rugged stirrup and wide saddle design holds securely with no damage to conduit or cable
CPC050 Standards
CSA Certified|UL File No. E160899SKU #2218555Part Number #CPC050UNSPSC31162906UPC00616013106983
