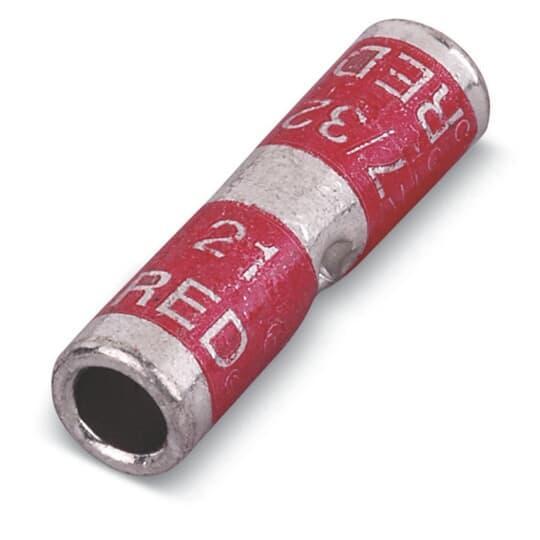

Image provided may only be a representation of
final product and may include optional equipment
CSP40
Thomas & Betts CSP40 Blackburn Compression Splice
Part Number # CSP40
SKU # 2225600
$173.60 / 10Each
Thomas & Betts CSP40 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | CSP40 |
| SKU #: | 2225600 |
| Barrel Type: | Short |
| Conductor Size: | 4/0, 4/0 AWG |
| Conductor Type: | Stranded Copper |
| Finish: | TiN Coated, Tin Plated |
| Type: | Type CSP |
| Country of origin: | MX |
| Length: | 1-7/8, 1-7/8 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121449 |
| UPC: | 00783786132119 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$173.60 / 10Each
Quantity:
Thomas & Betts CSP40 Blackburn Compression Splice
Brand: Thomas & Betts
Part Number: CSP40
Blackburn Compression Splice, Type CSP, Stranded Copper Conductor, 4/0 AWG Conductor, 1-7/8 in Length, Short Barrel, 35 kV, Copper, Purple, Tin Plated
Additional Description: TB -CSP40 CU TP SPLICE SHORT BRL 4/0STR PUR
Catalog Description: Type CSP Copper Splice, Short Barrel, Max 35kV, Wire Size 4/0 Str, Tin Plated, Die Color Code Purple
CSP40 Application
Building, Confined Areas, Regular Duty and Industrial ApplicationsCSP40 Item Features
- Made of high conductivity seamless copper tubing, tin plated for corrosion-resistance
- Specifically chamfered barrel for ease of installation
- Color coded for matching die identification
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- For use with copper conductor AWG, stranded, flexible cable, welding cable and portable cord
CSP40 Standards
UL E9809 / UL E9809SKU #2225600Part Number #CSP40UNSPSC39121449UPC00783786132119
