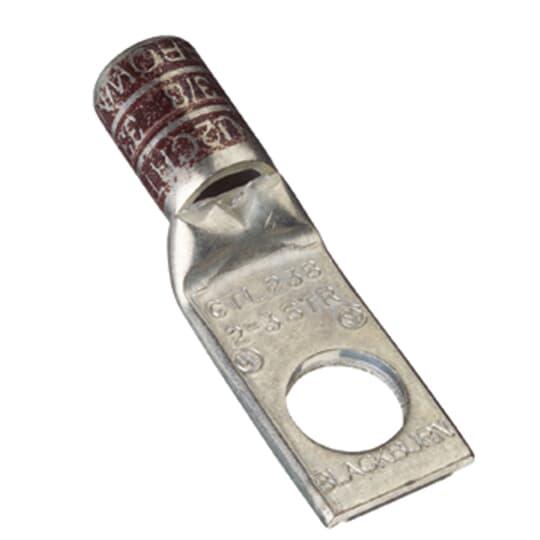

Thomas & Betts CTL2-12 Blackburn Compression Lug
Image Disclaimers Message
Thomas & Betts CTL2-12 Blackburn Compression Lug
Thomas & Betts CTL2-12 Blackburn Compression Lug
Part #:CTL2-12
SKU #: 2272079
Key Features
Part #:CTL2-12
SKU #: 2272079
Brand: Thomas & Betts
Barrel Size: 19/32 in L
Barrel Type: Short, Short/Standard
Conductor Size: 2, 2 AWG
Conductor Type: Copper/Stranded, Flexible/Stranded Copper
Overall Length: 1-29/32, 1-29/32 in
- Made of high conductivity seamless copper tubing
- Tin plated for corrosion-resistance
- Specially chamfered barrel for ease of installation
- Color coded for matching die identification
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- Short barrel connectors designed for regular duty applications
- For use with copper conductor AWG, stranded, flexible cable, welding cable and portable cord
Thomas & Betts CTL2-12 Blackburn Compression Lug
Color-Keyed Compression Lug, 1-Hole, Series: CTL, Flexible/Stranded Copper Conductor, 2 AWG Conductor, 35 kV, 1/2 in Stud, Straight Tongue, 1-1/16 in L x 3/4 in W x 1/16 in THK Tongue, 1-29/32 in Overall Length, Short/Standard Barrel, 19/32 in L Barrel, Specifications: Tin Plated, Copper, Brown
Additional Description: TB -CTL2-12 CU TP 1HL LUG SHRTBRL 2 1/2B BRN
Catalog Description: Copper One-Hole Lug, Short Barrel, Max 35kV, 2 Str. Wire, 1/2 Bolt Size, Tin Plated, Die Color Code Brown
